HSC Physics Module 6 Exam and Worked Solutions

Use arrows on the side of the screen to move between pages.

Important: These tests take time to write, if you’re in a position consider buying me a coffee so I can keep doing this in the long term.

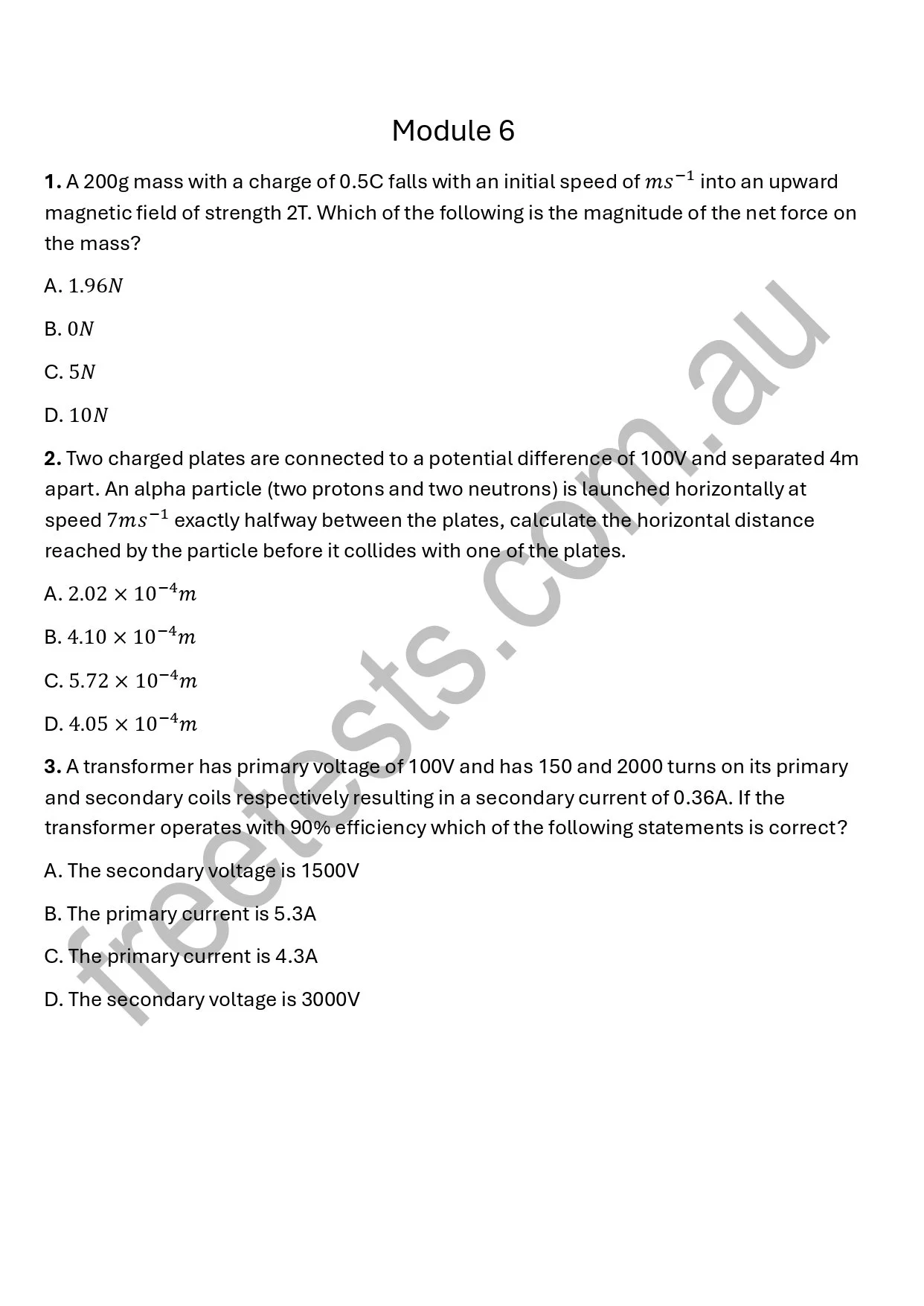

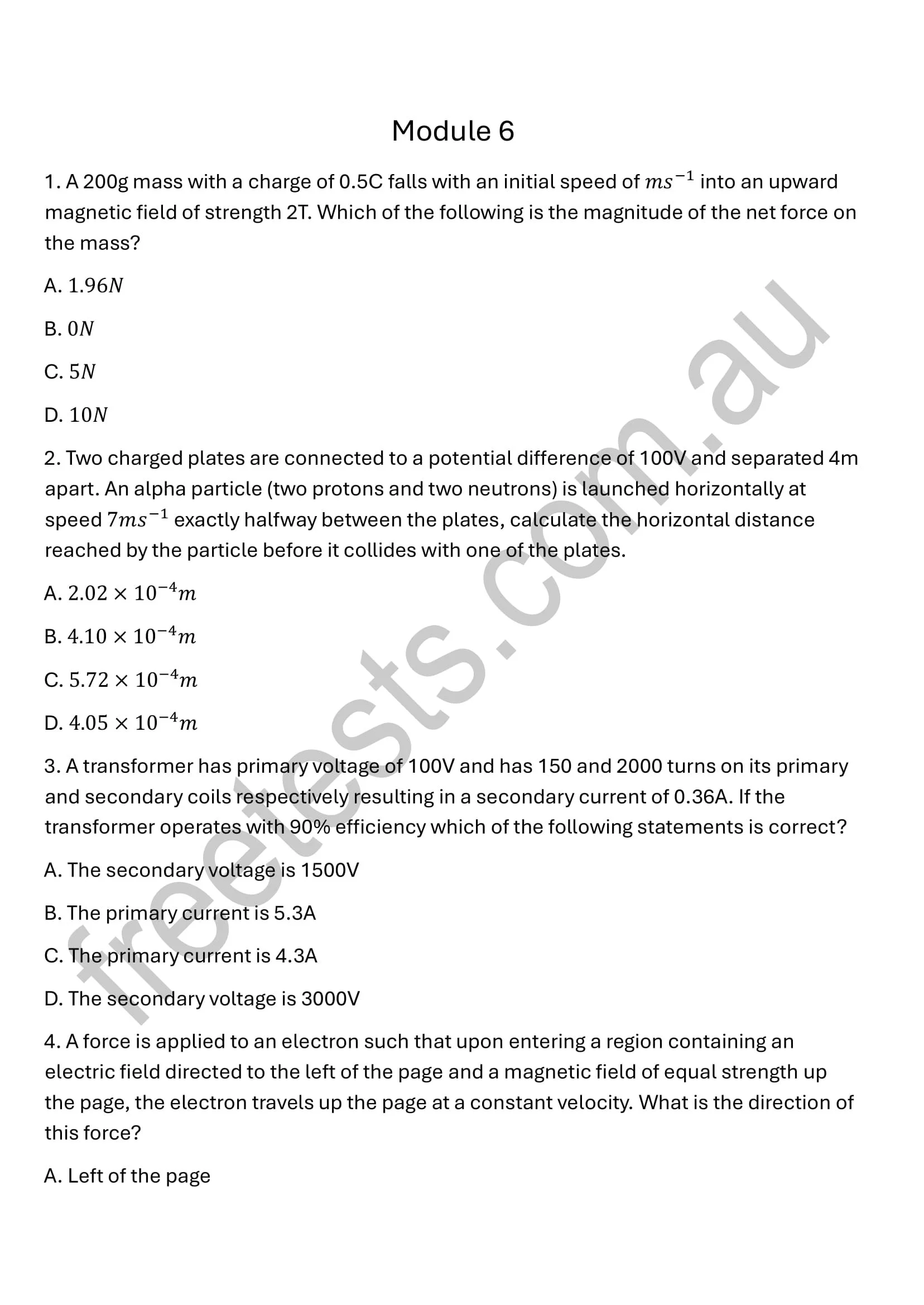

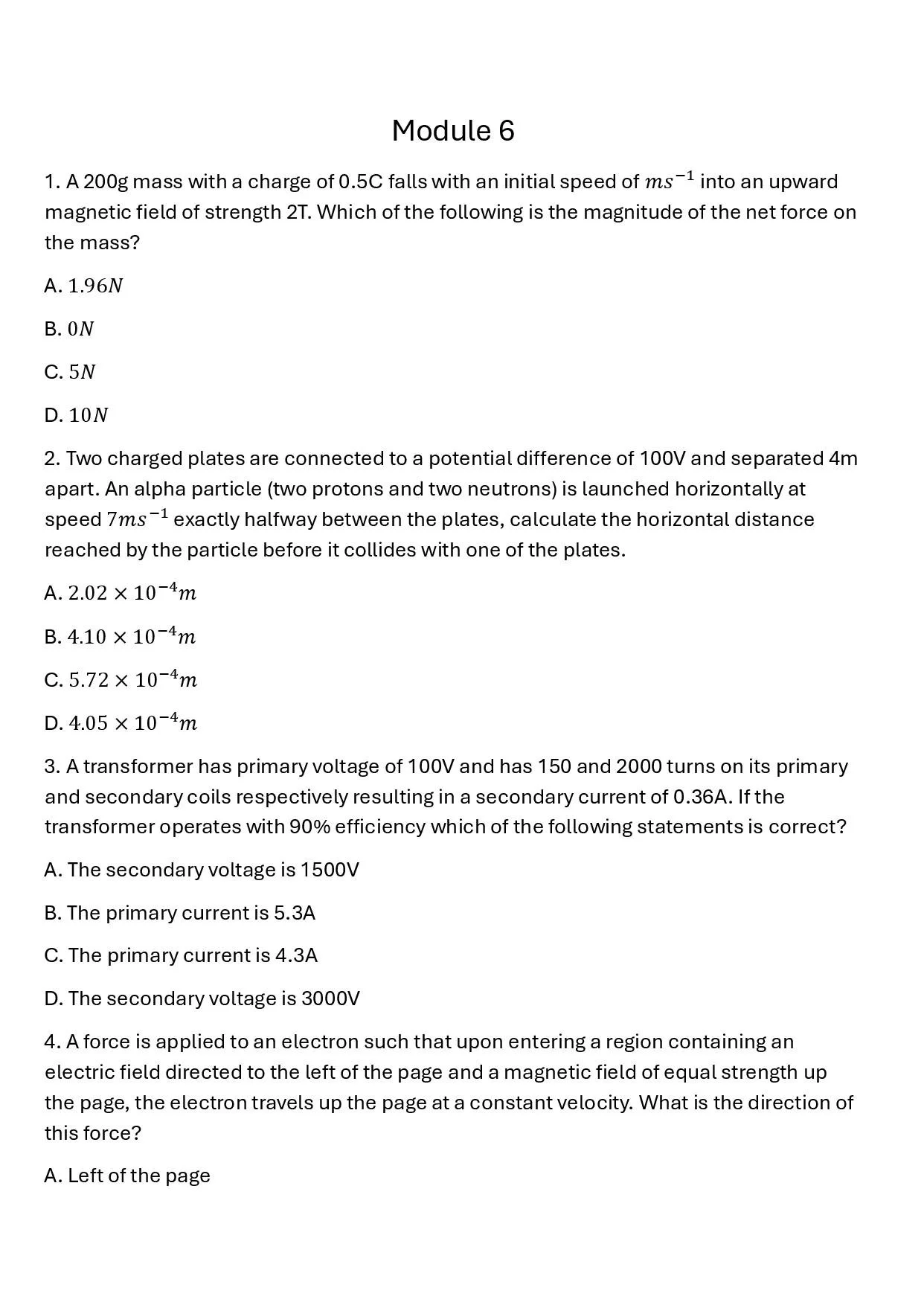

Page from an academic physics exam or textbook, titled 'Module 6', with three multiple-choice questions about physics concepts such as magnetic forces, particle motion, and transformer calculations.

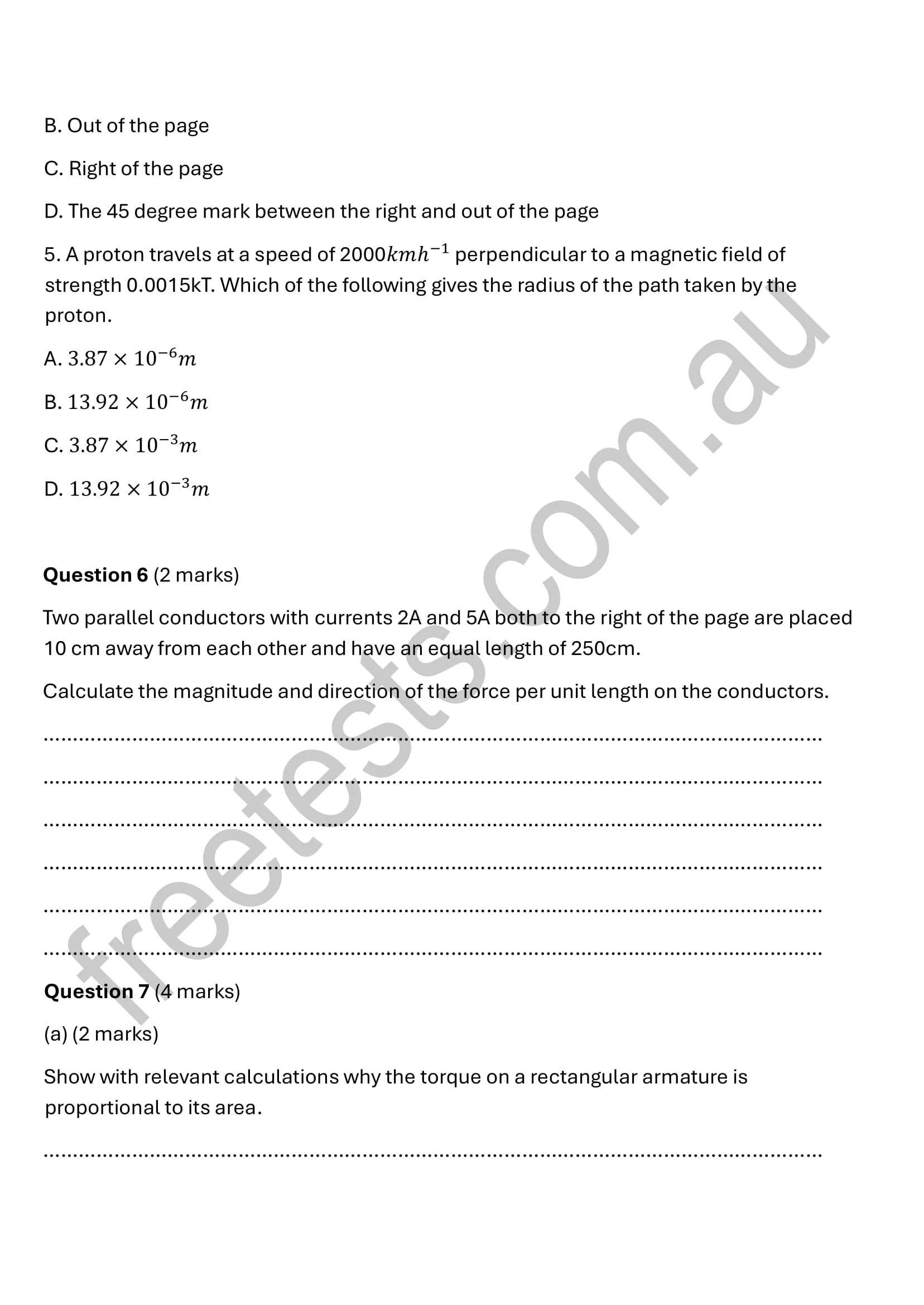

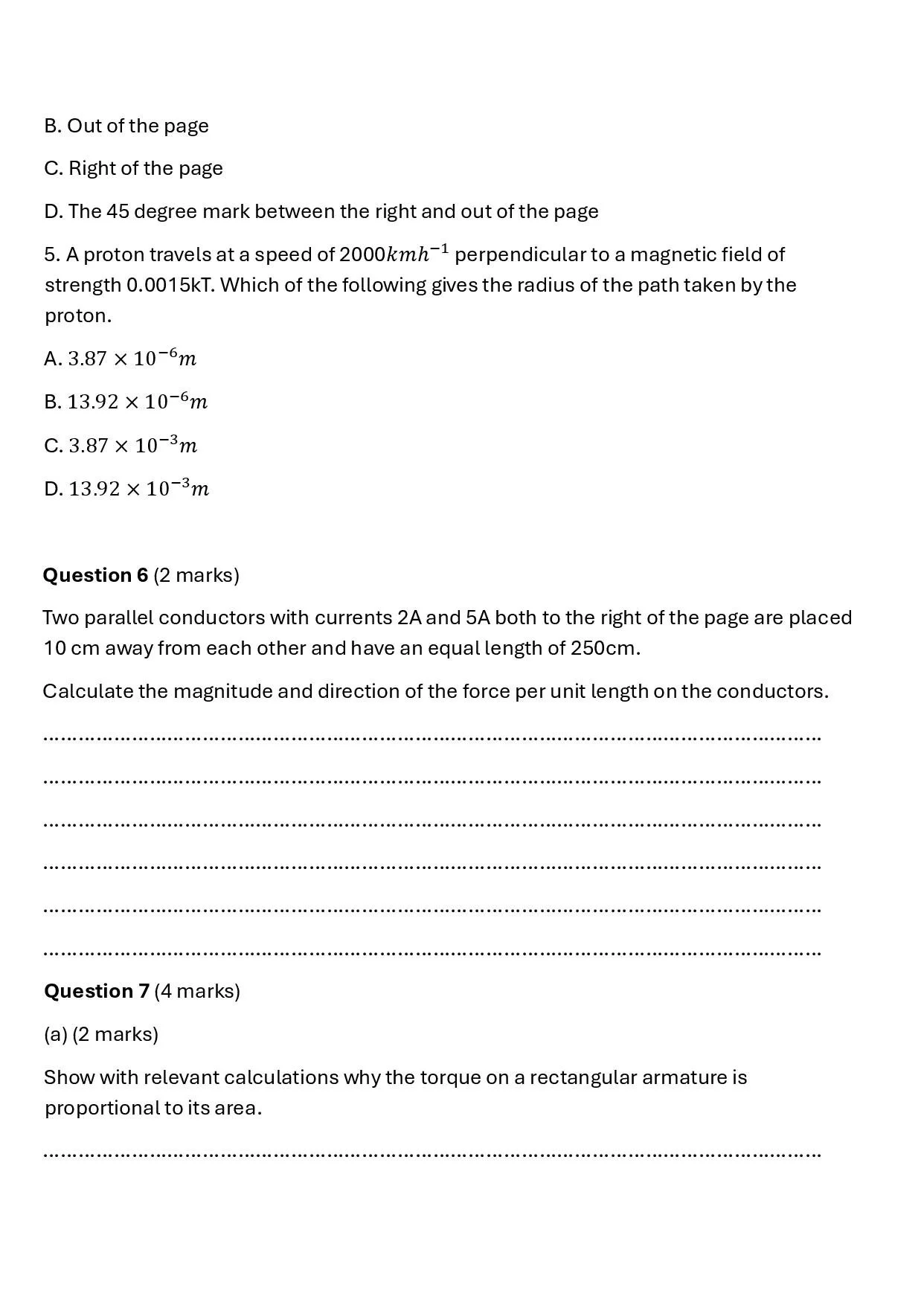

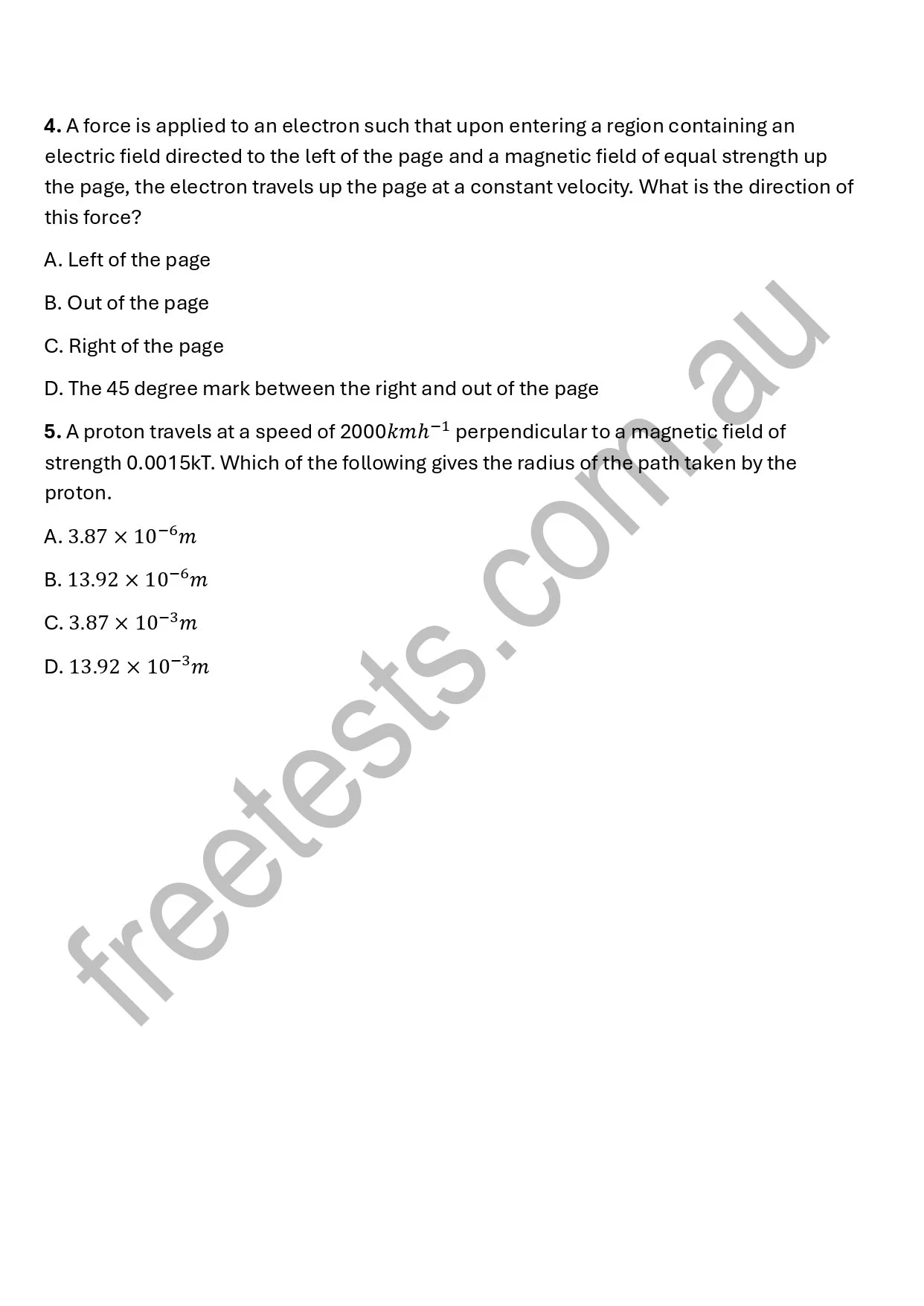

Screenshot of physics questions involving electric and magnetic fields, electron forces, and proton travel calculations.

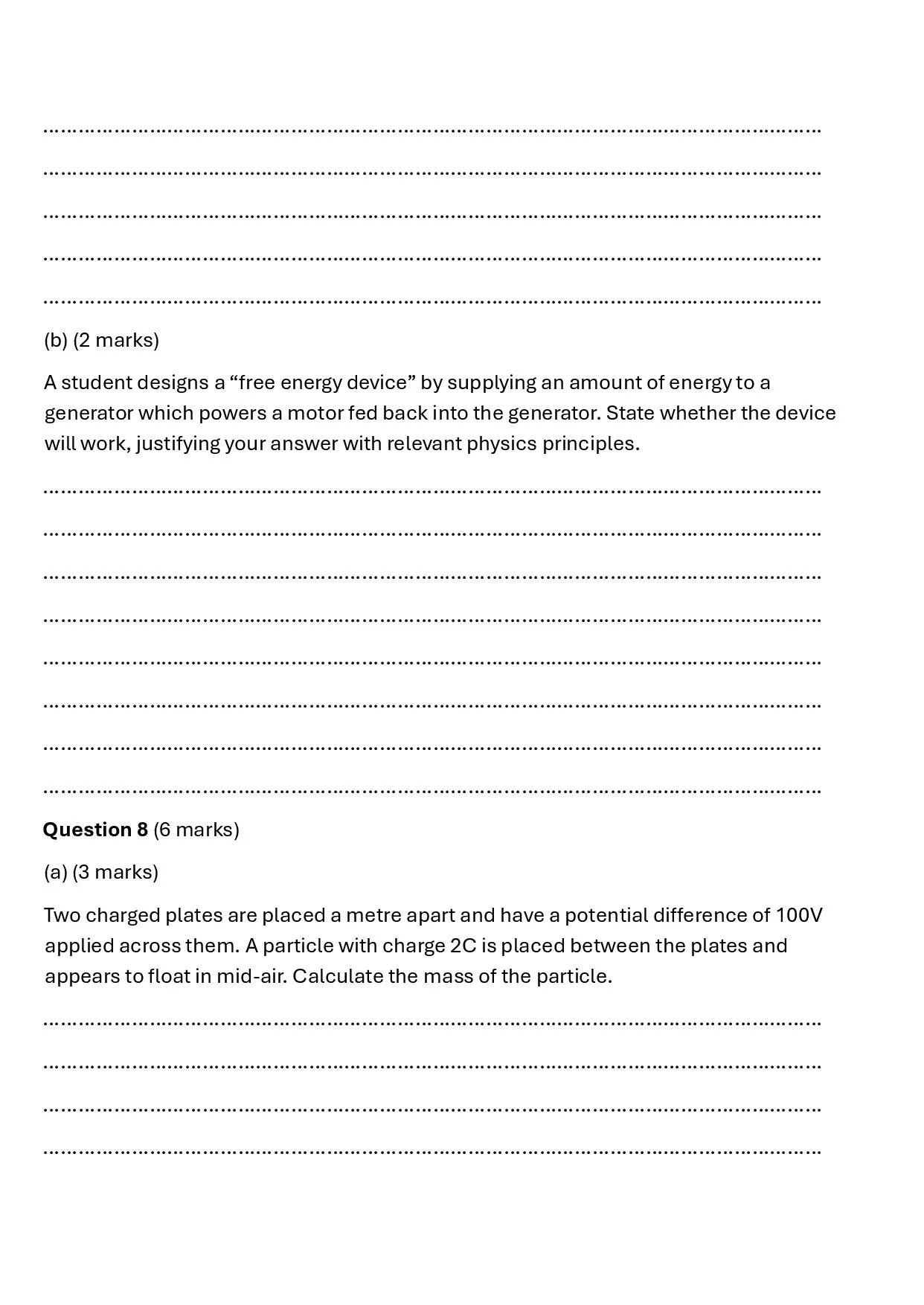

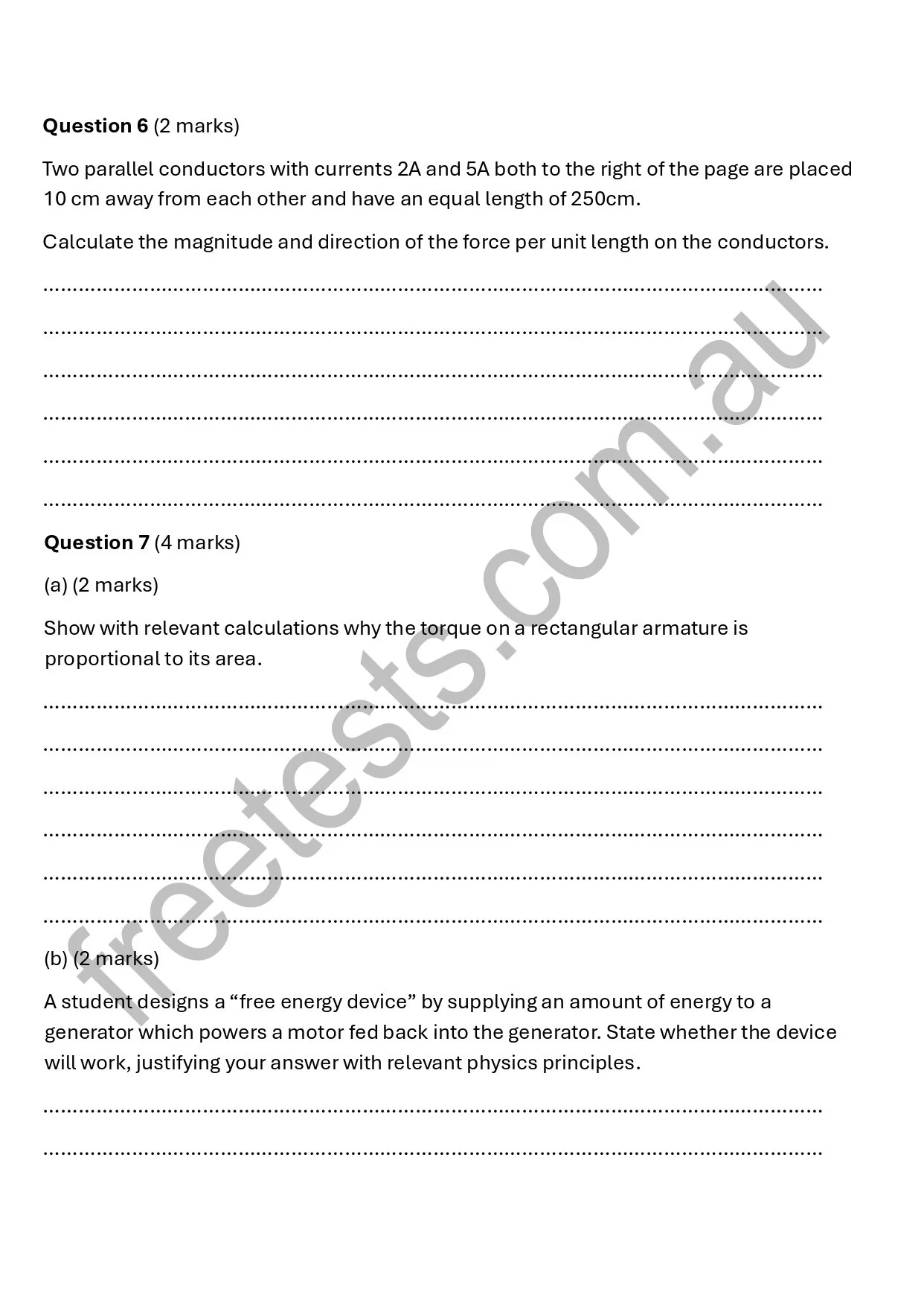

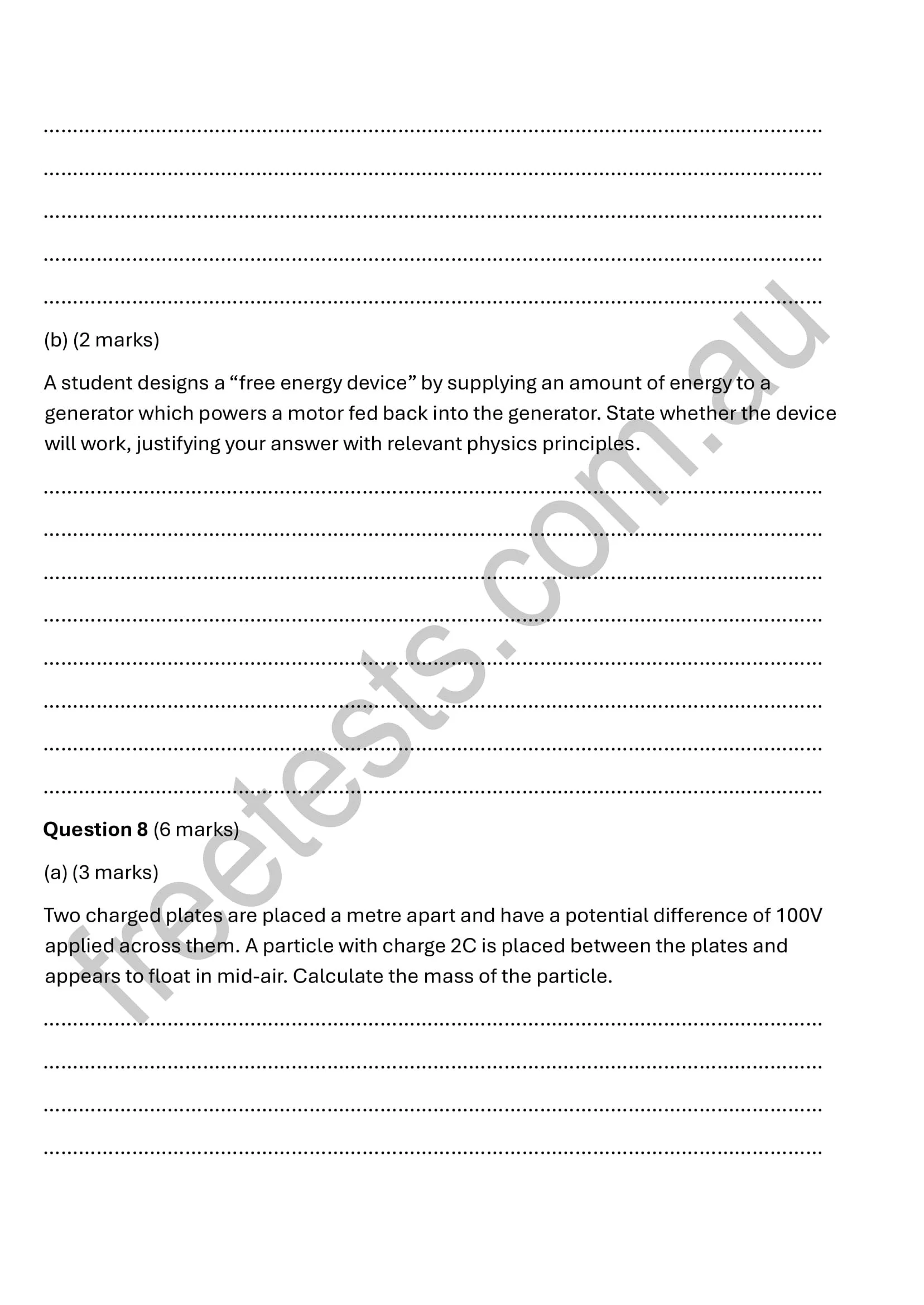

A printed exam sheet with questions about physics, including calculations on force and torque, and a question on energy devices. The sheet contains numbered sections, dotted lines for answers, and is watermarked with the URL 'stetson.com.au'.

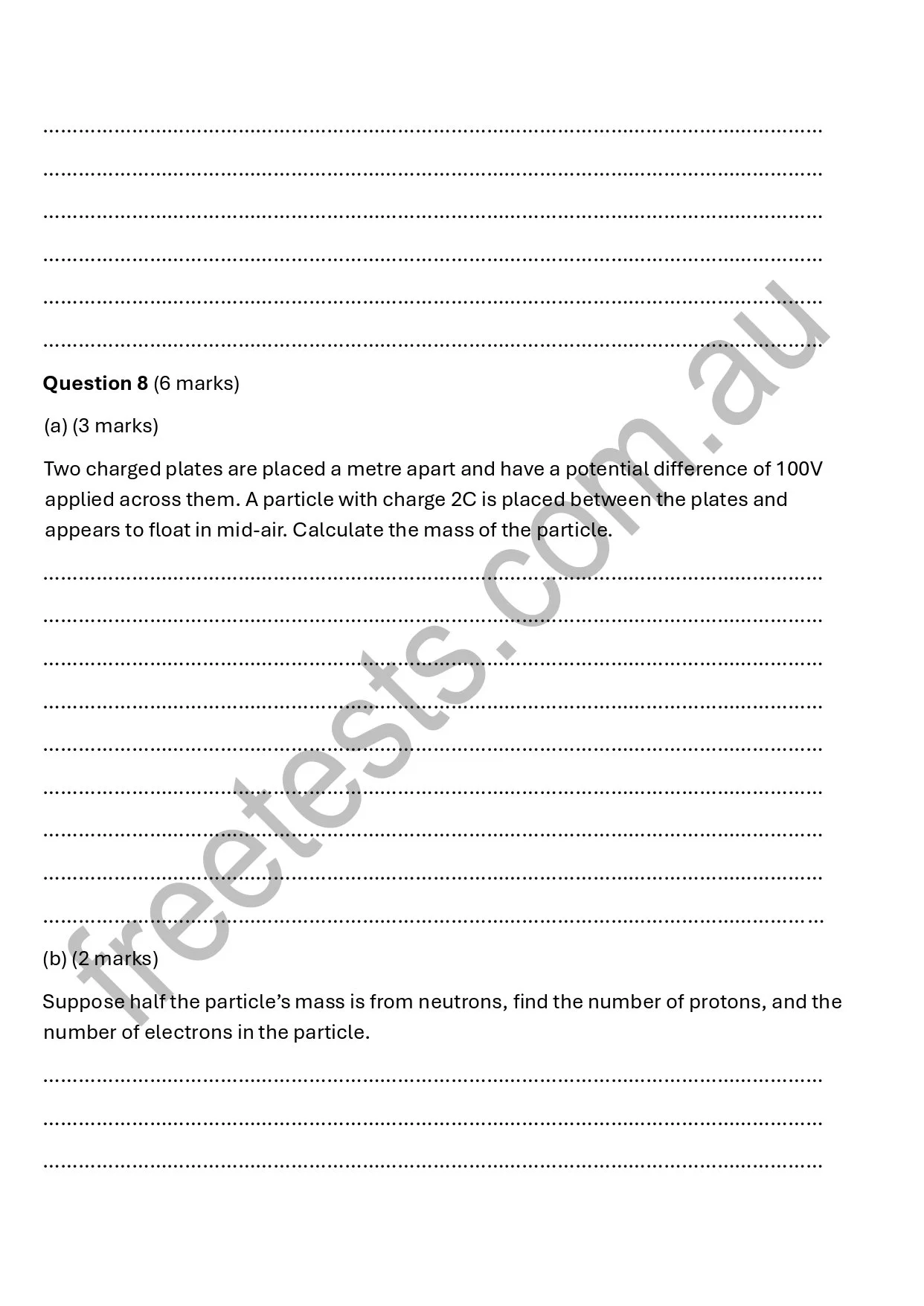

This is a scanned physics exam paper with questions about charged particles and electric potential. The page shows a header, numbered questions with subparts, and dashed lines for answers, with a watermark across the page.

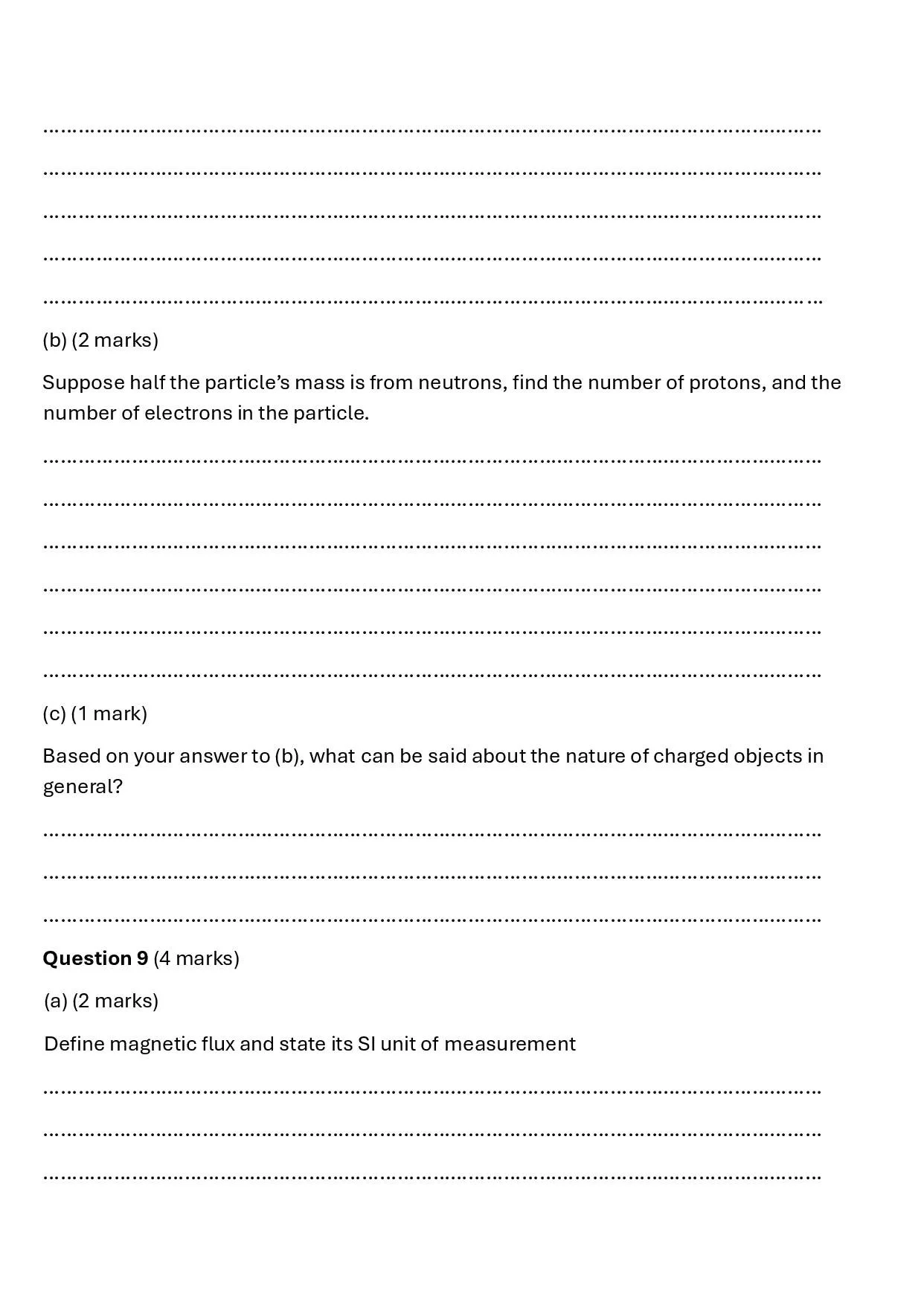

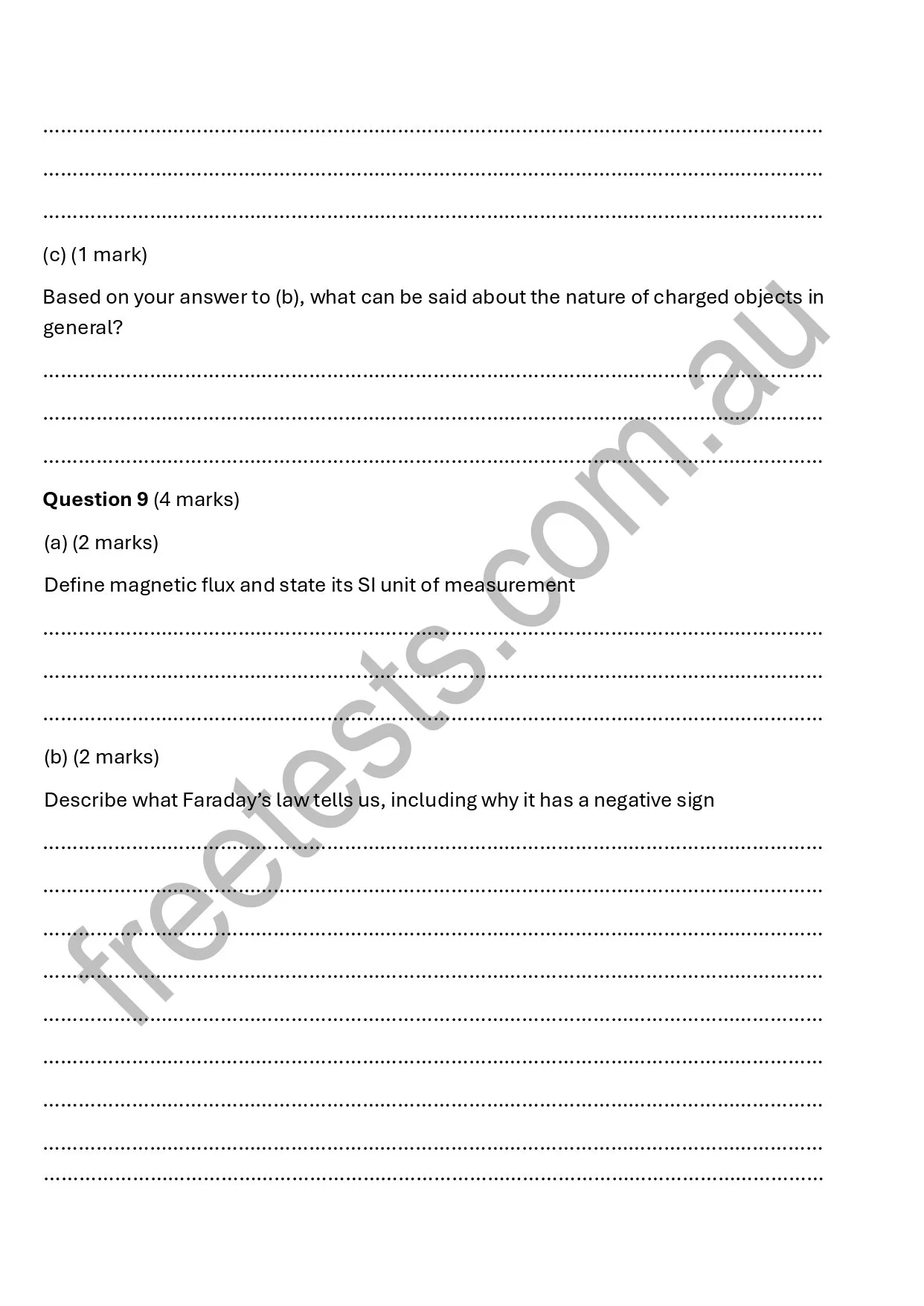

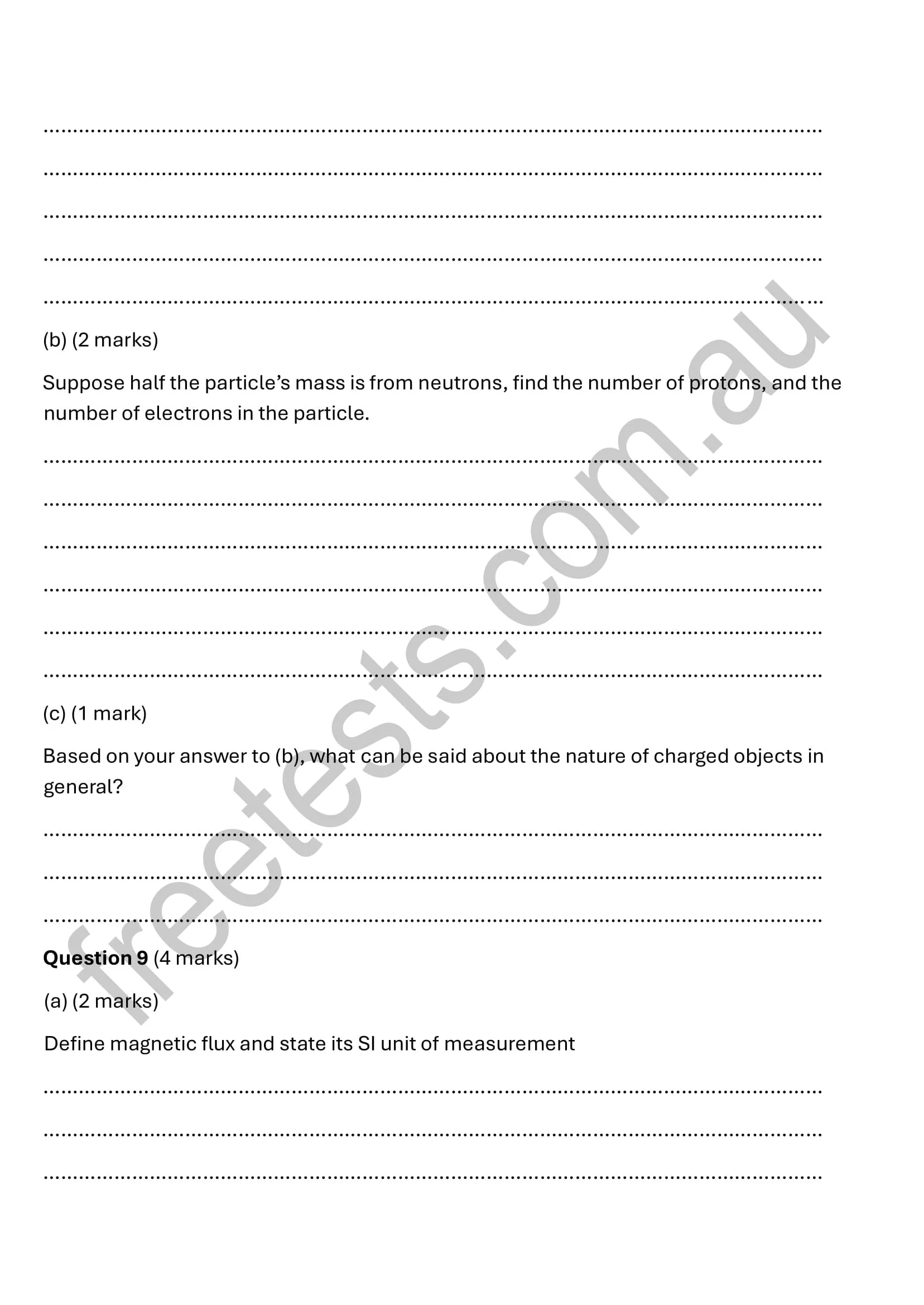

A worksheet with questions about physics, including topics like charged objects, magnetic flux, SI units, and Faraday's law.

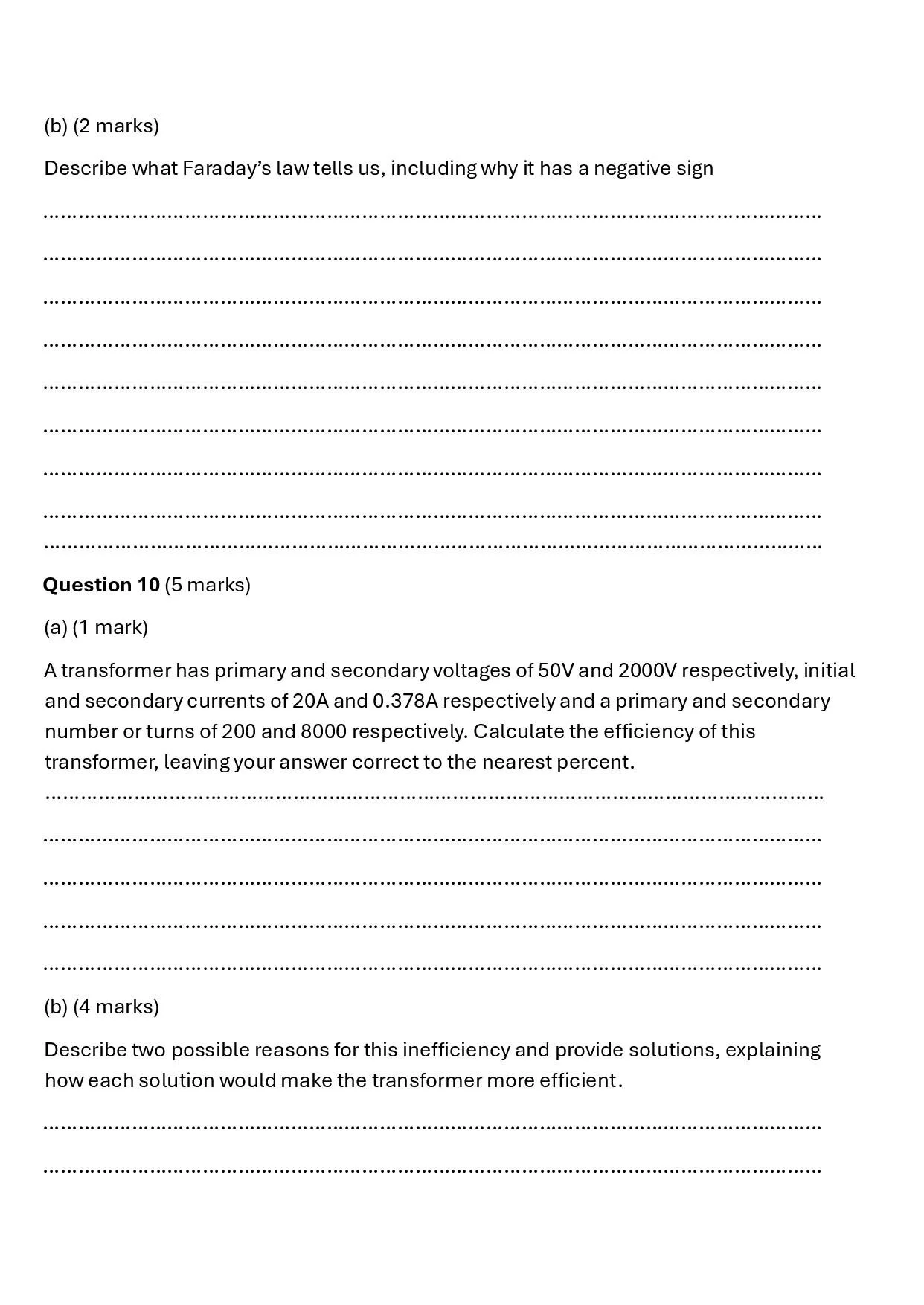

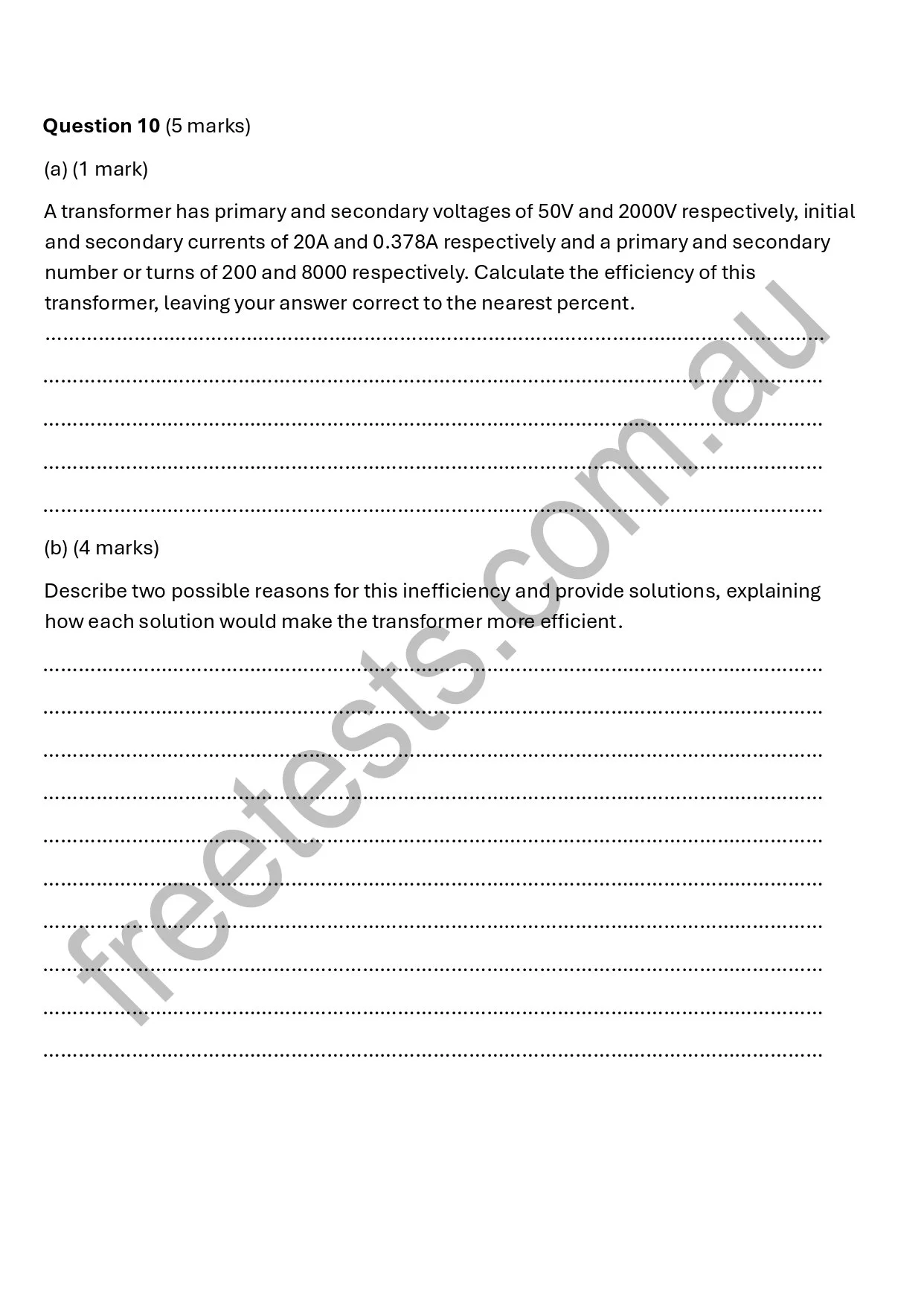

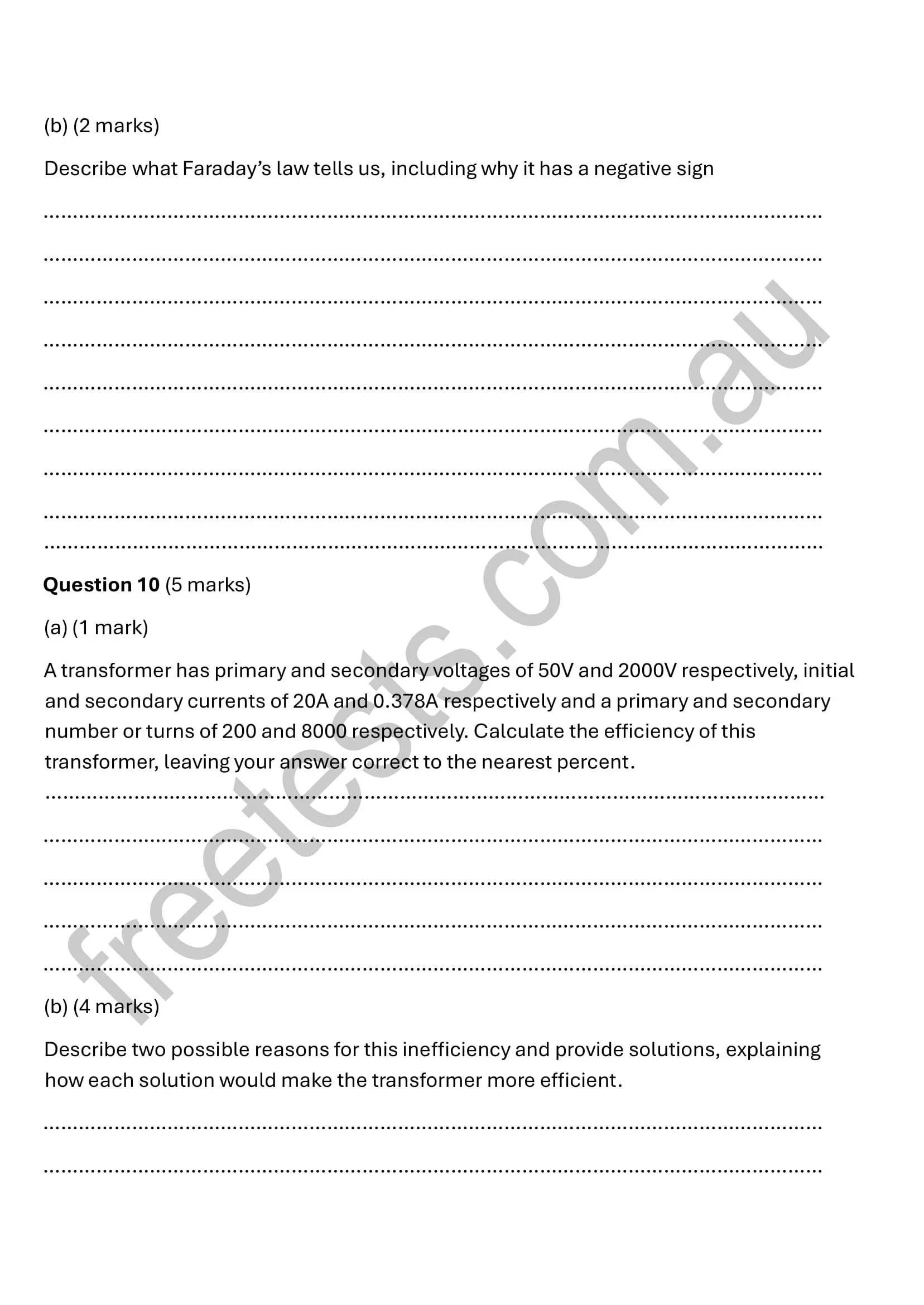

A screenshot of a physics exam question about a transformer, with two parts asking for the calculation of efficiency and reasons for inefficiency.

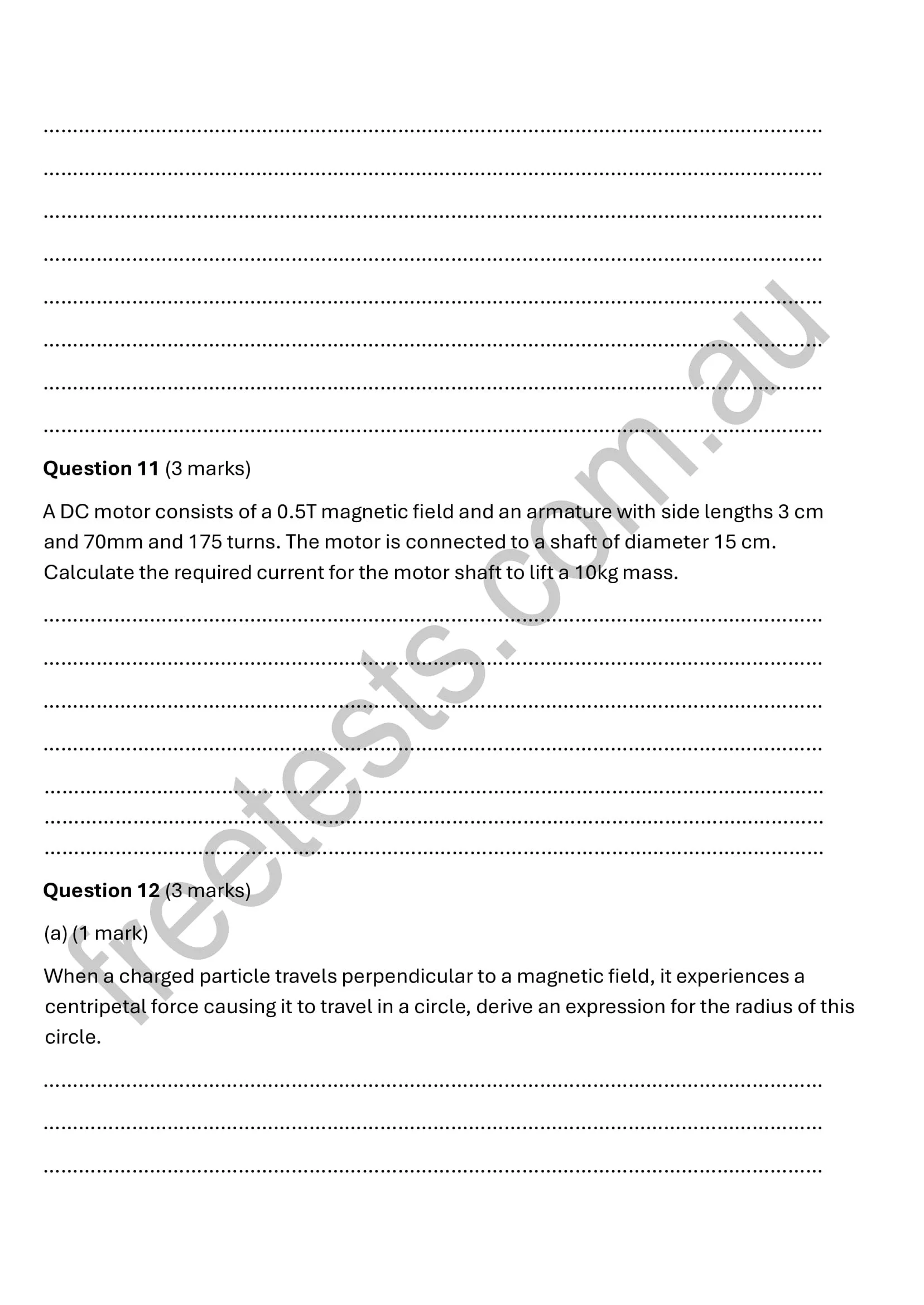

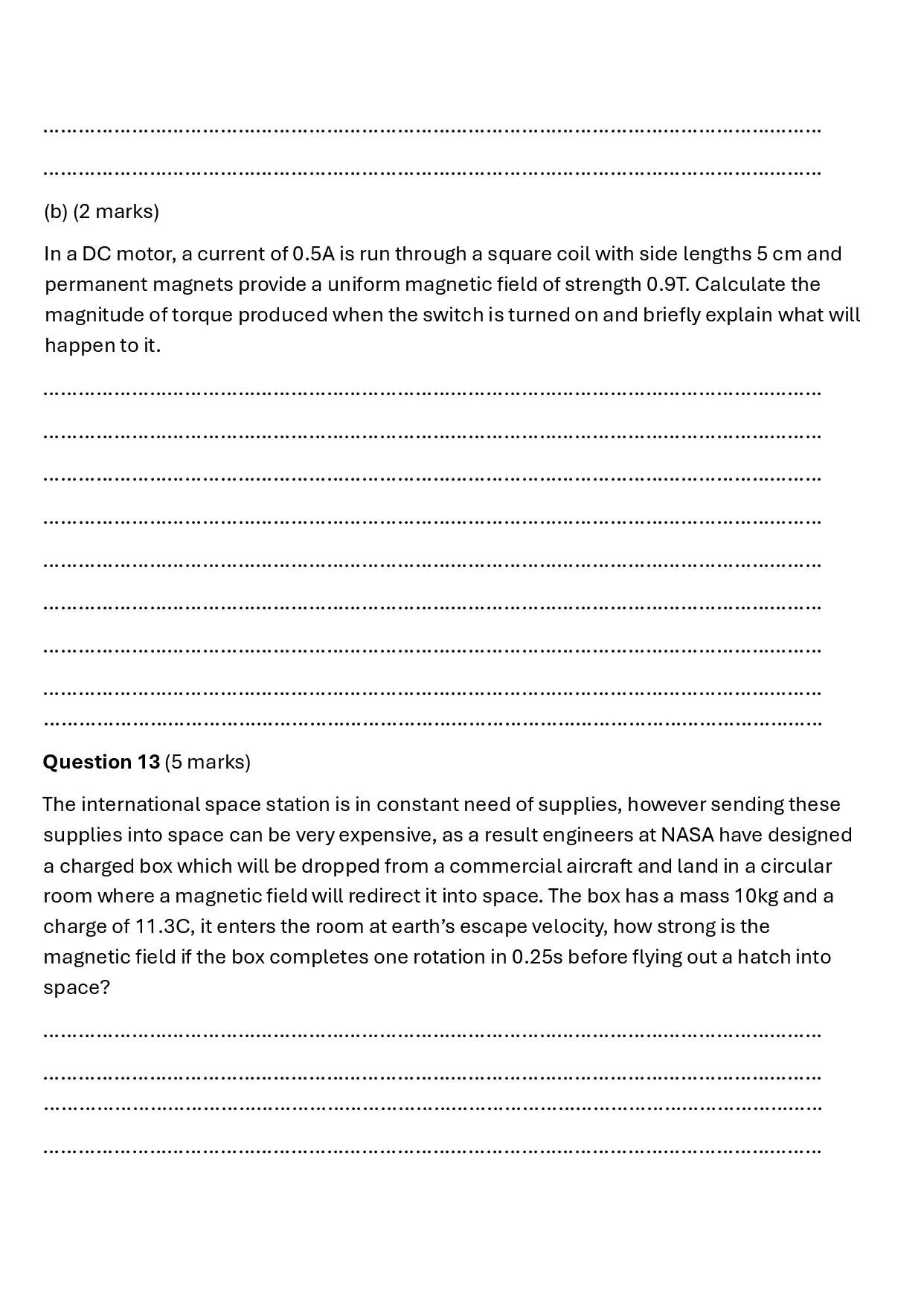

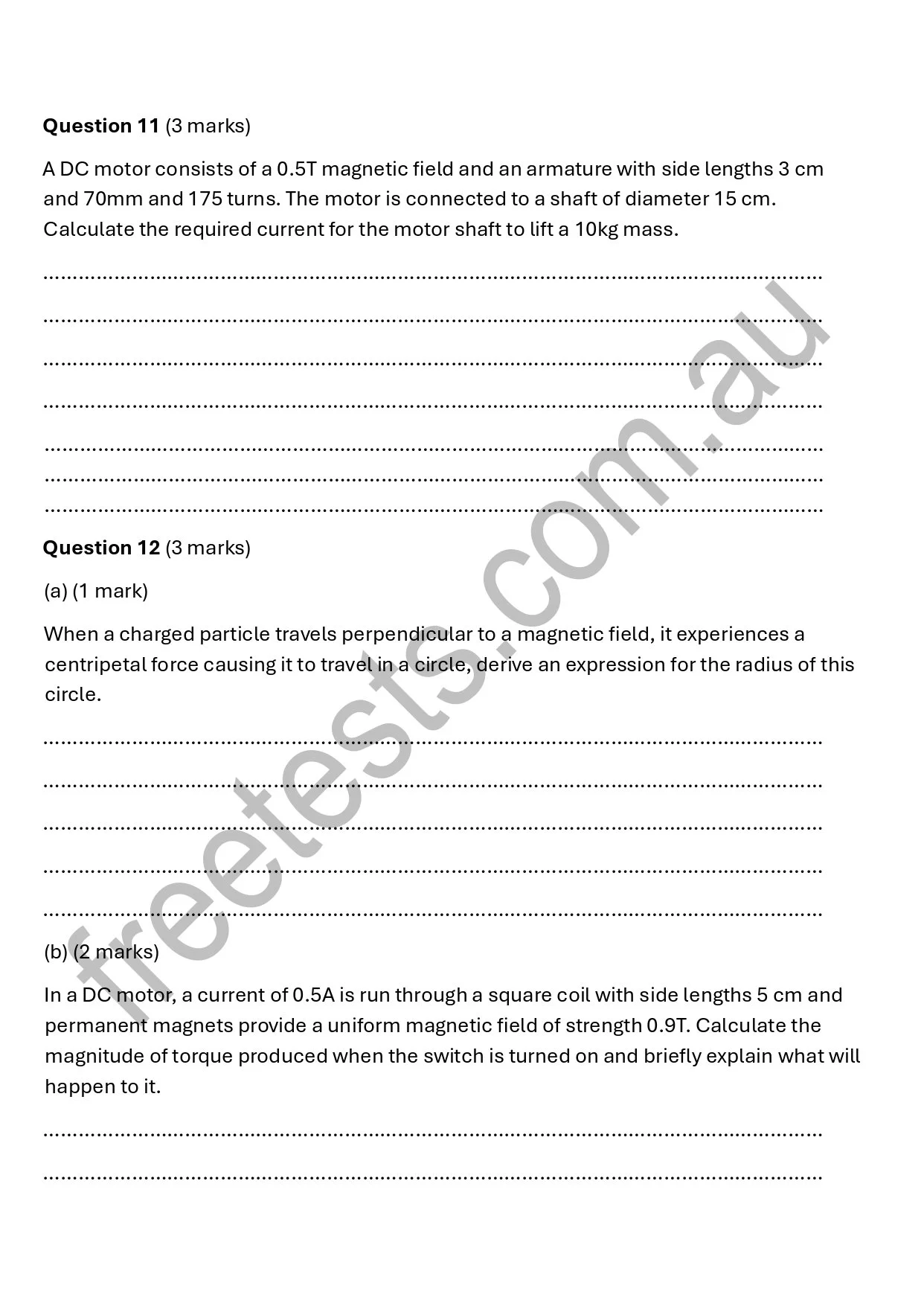

A scanned page of physics exam questions about DC motors, magnetic fields, and related calculations.

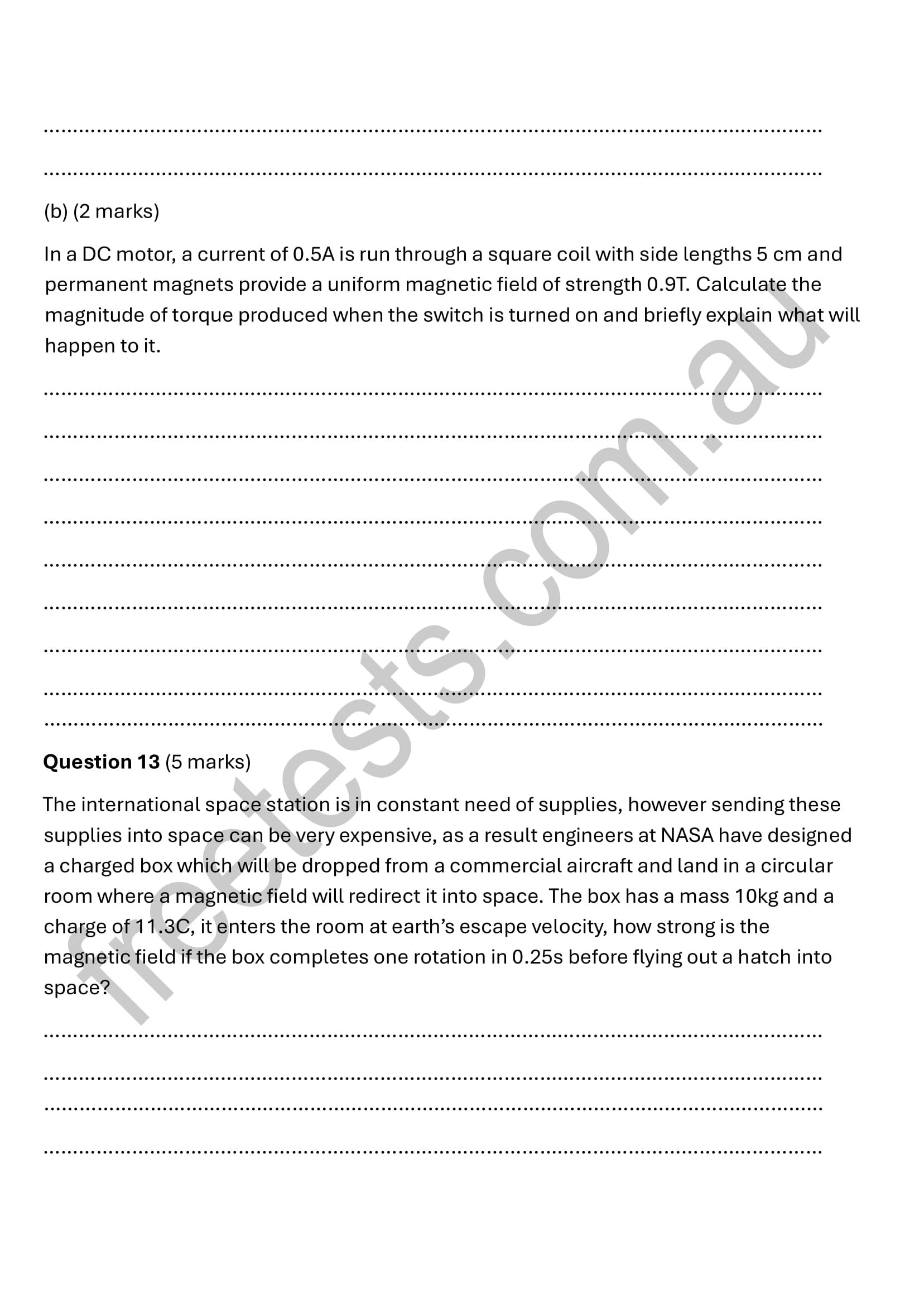

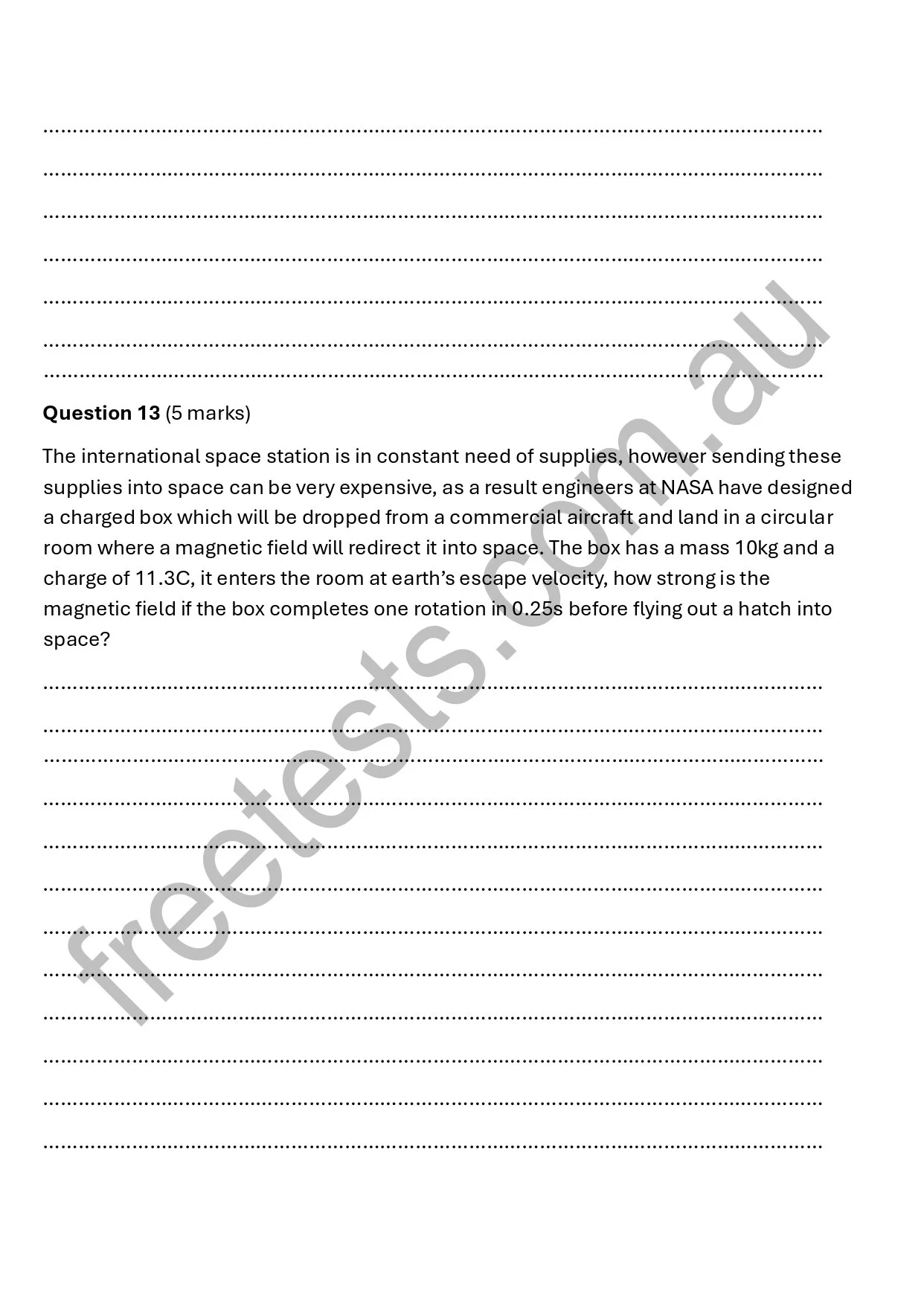

A page of a test or worksheet with question 13 asking about the magnetic field strength of a charged box in space, with dotted lines for answers.

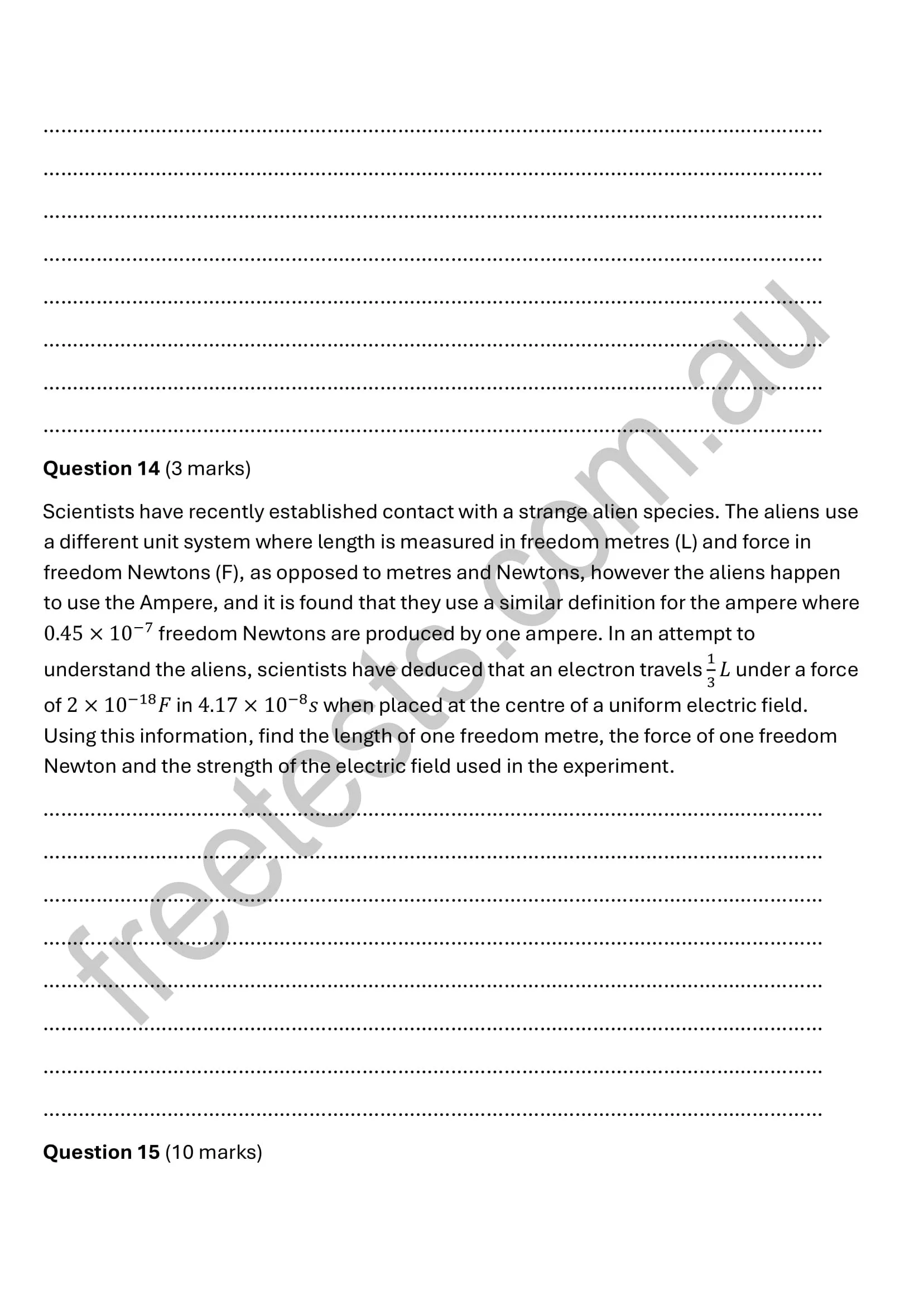

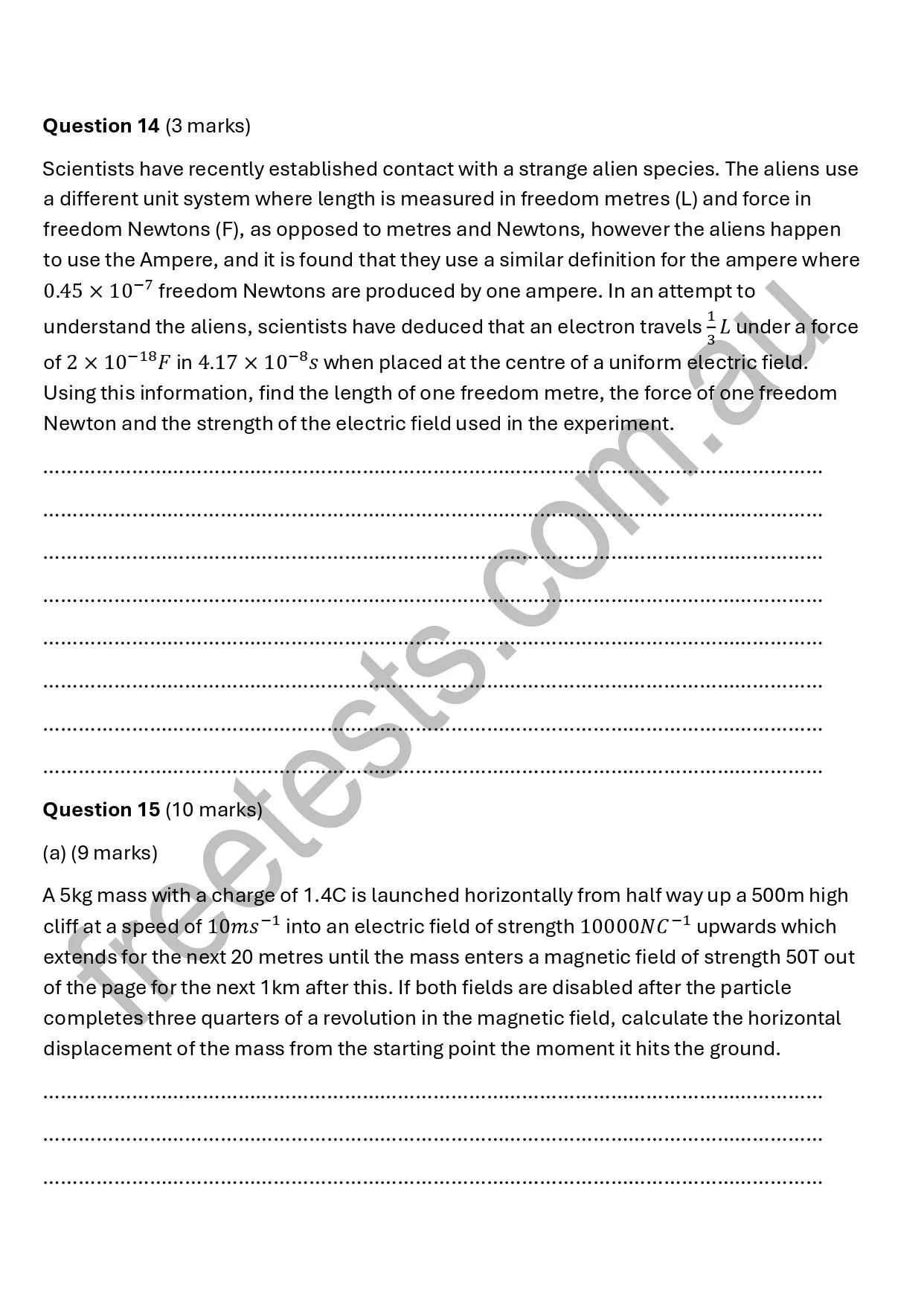

Two physics questions with detailed problems involving electric fields, forces, and magnetic fields with lots of scientific notation and calculations.

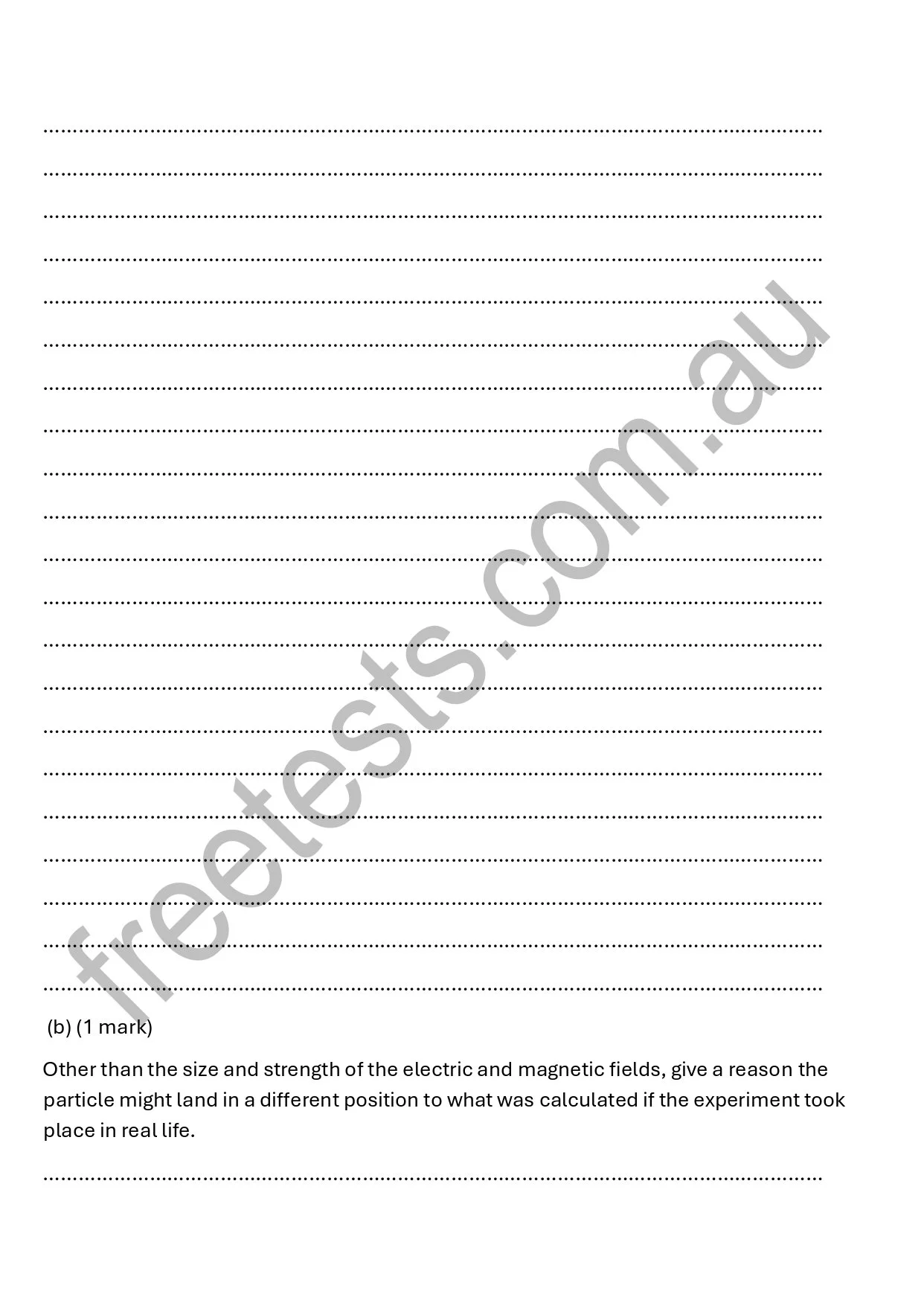

A worksheet with dotted lines for writing and a question about particles in real life, with a large watermark text across it that reads 'free-essays.com.au'.

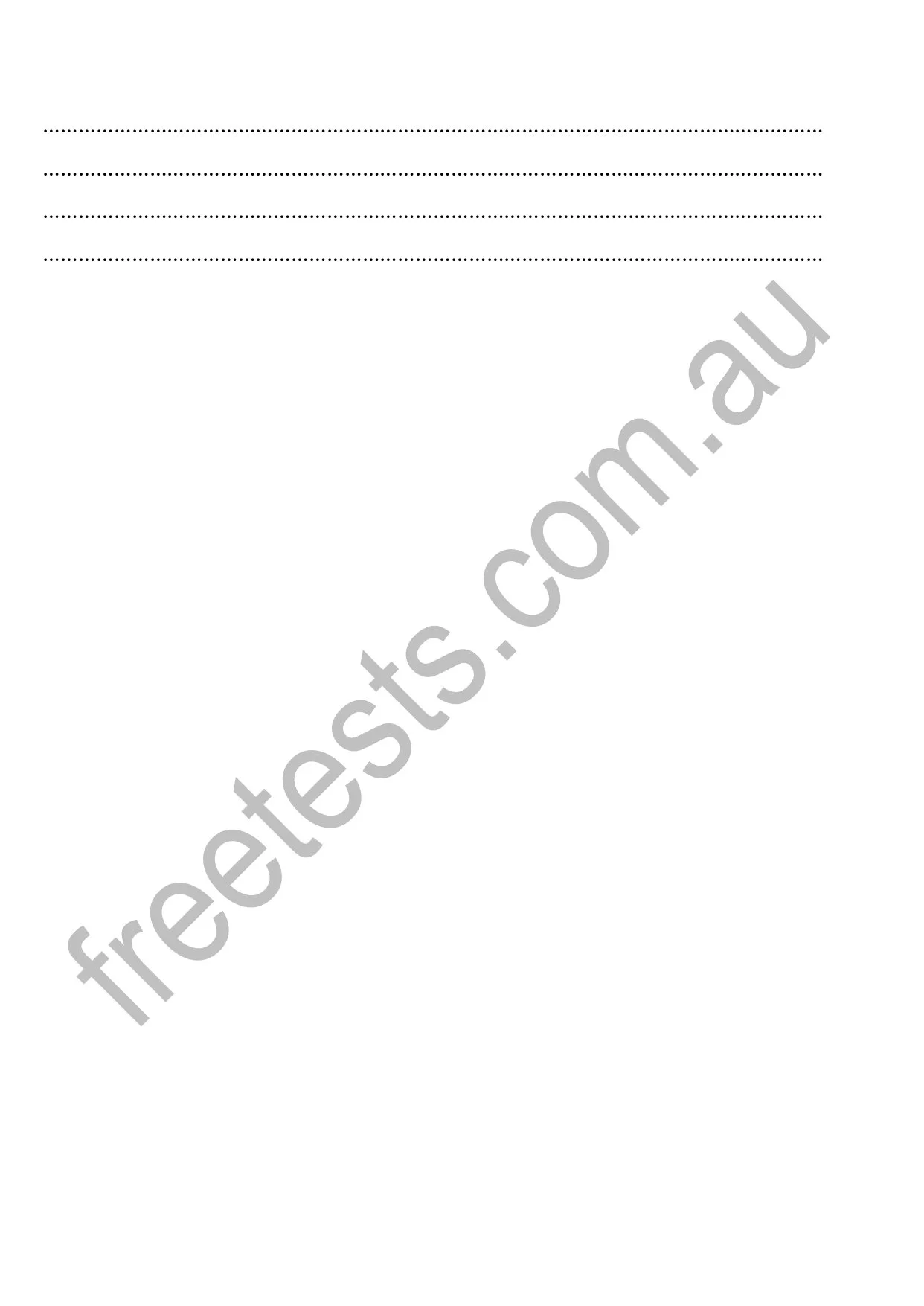

Blank page with dotted lines and watermark 'freetests.com.au' diagonally across the page.

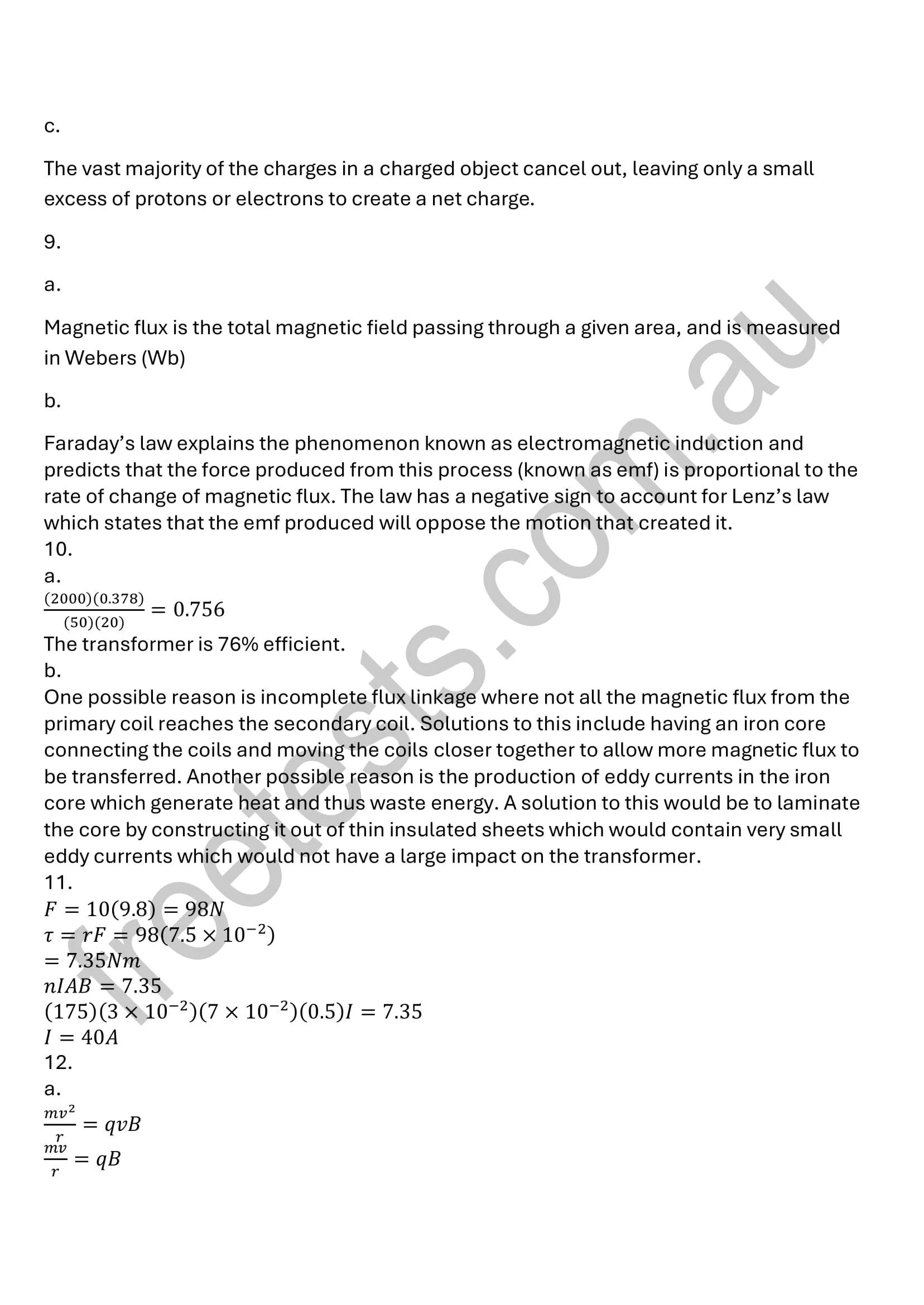

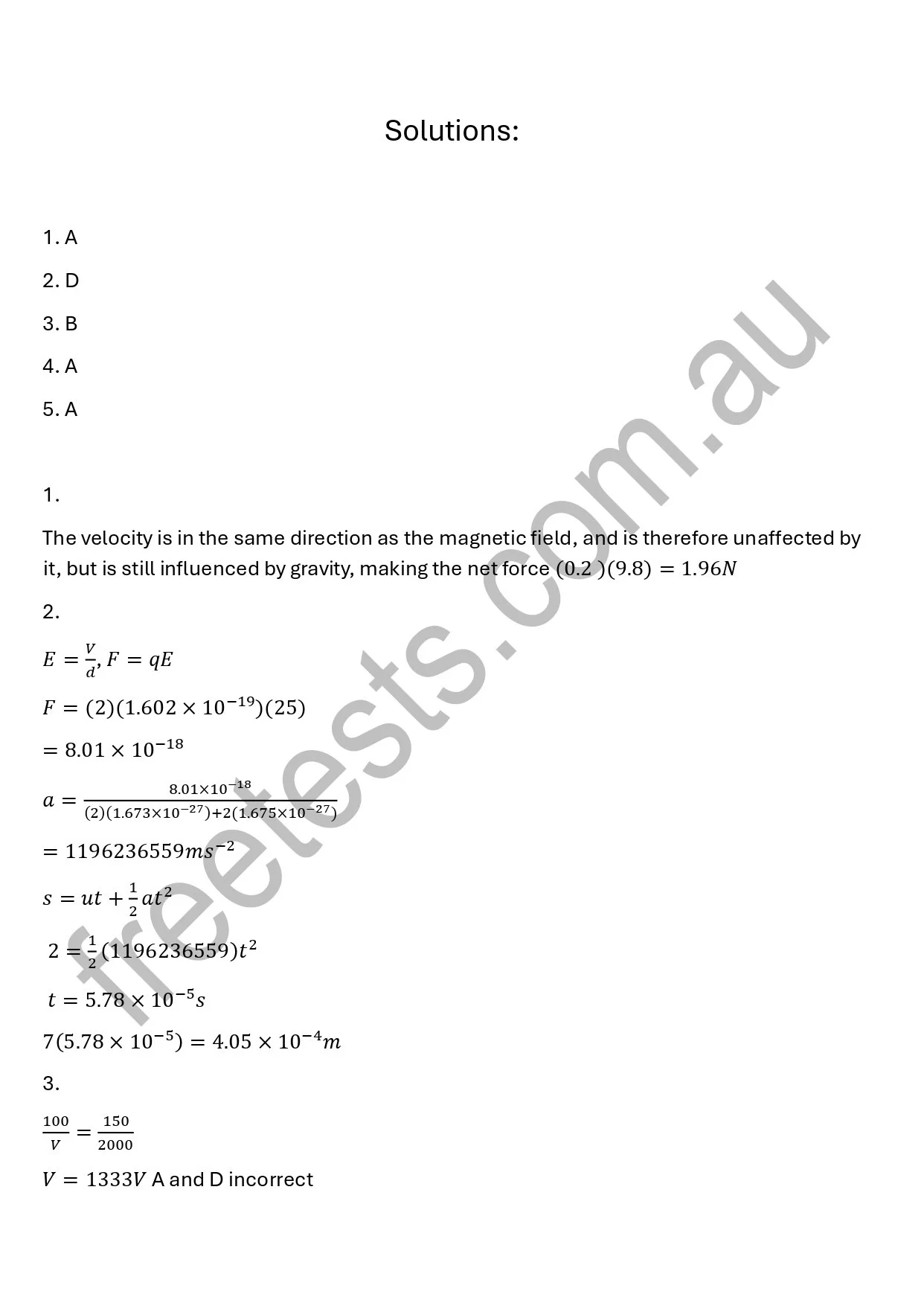

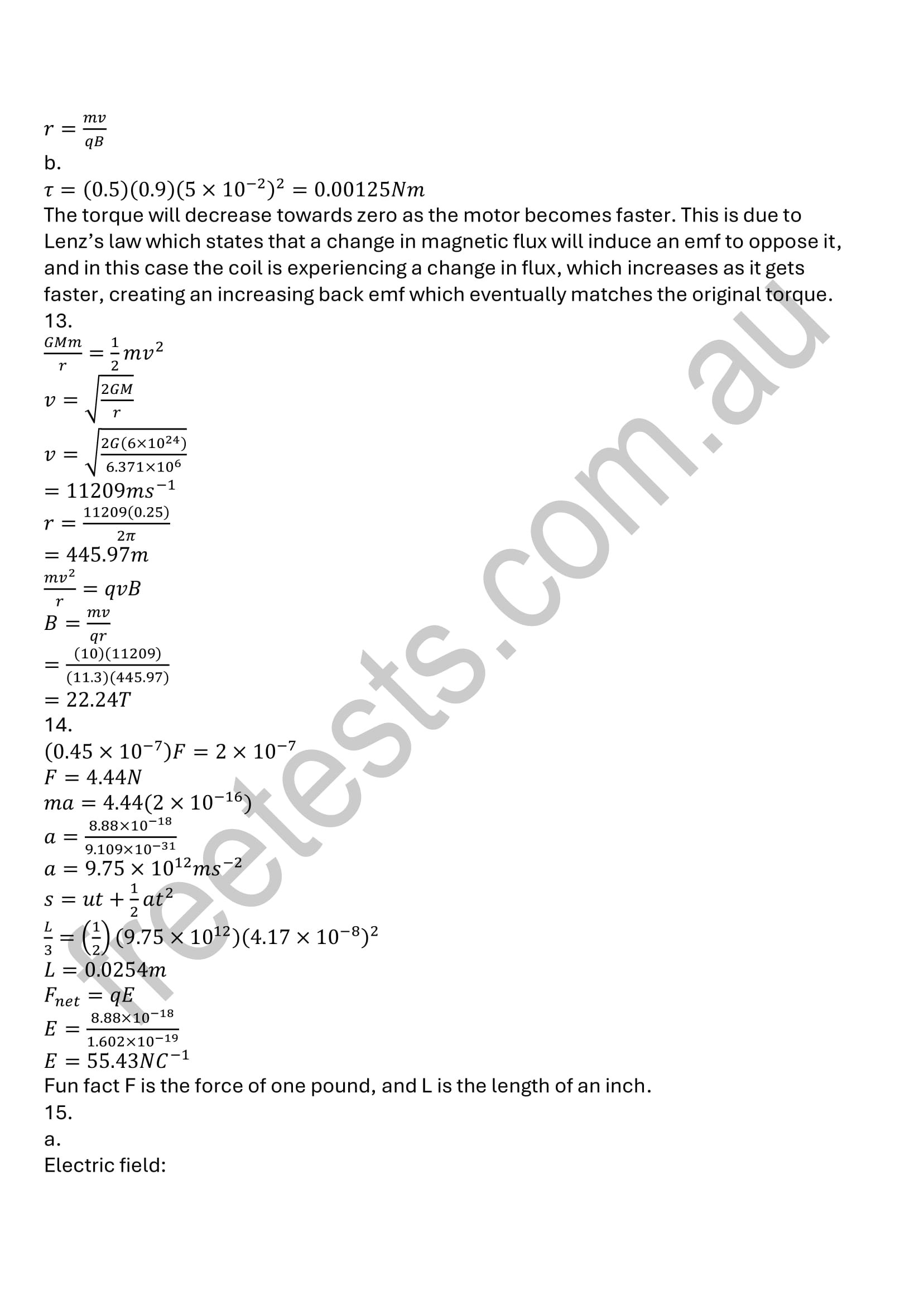

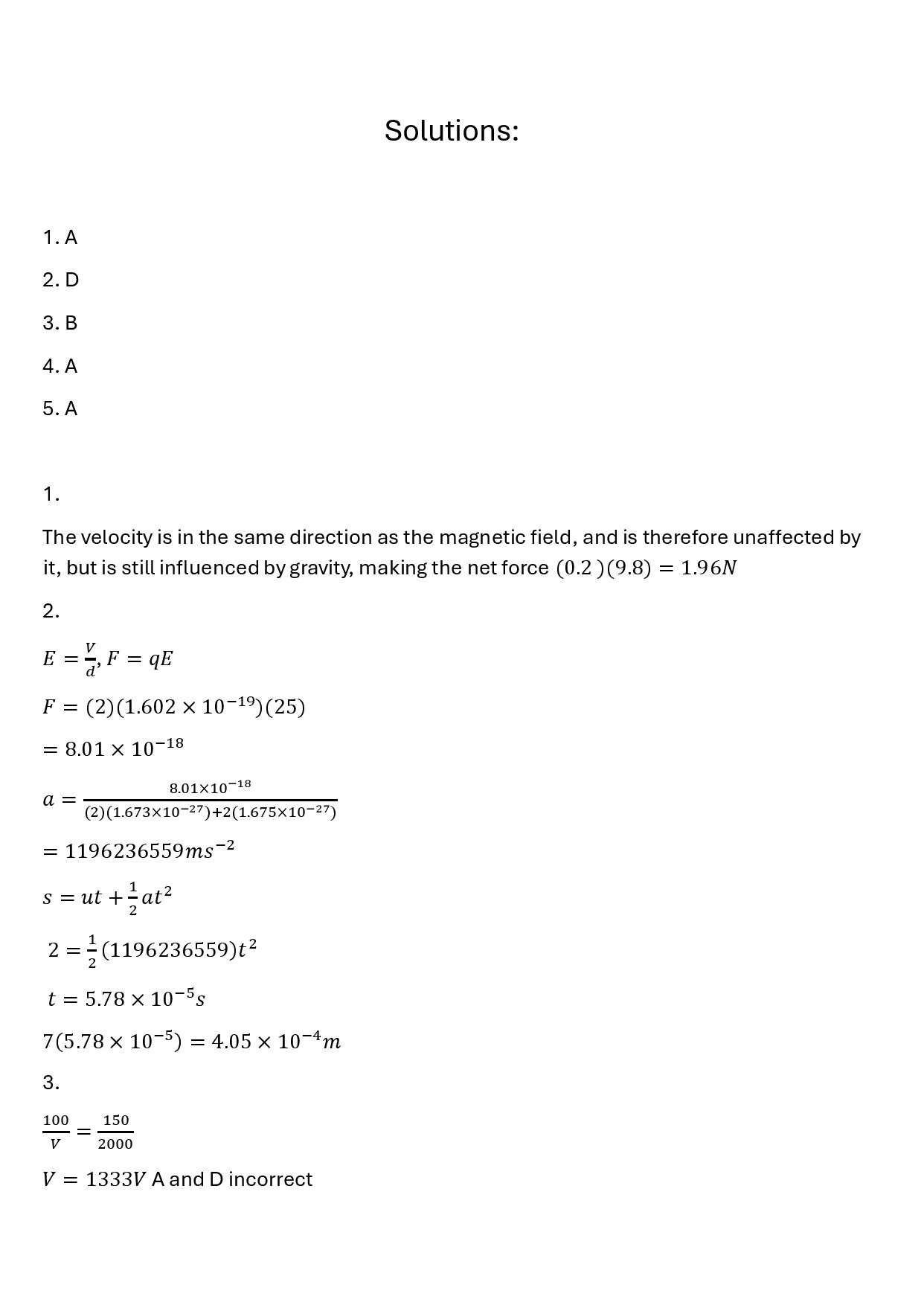

A page with physics solutions, including formulas and calculations on forces, energy, and velocity.

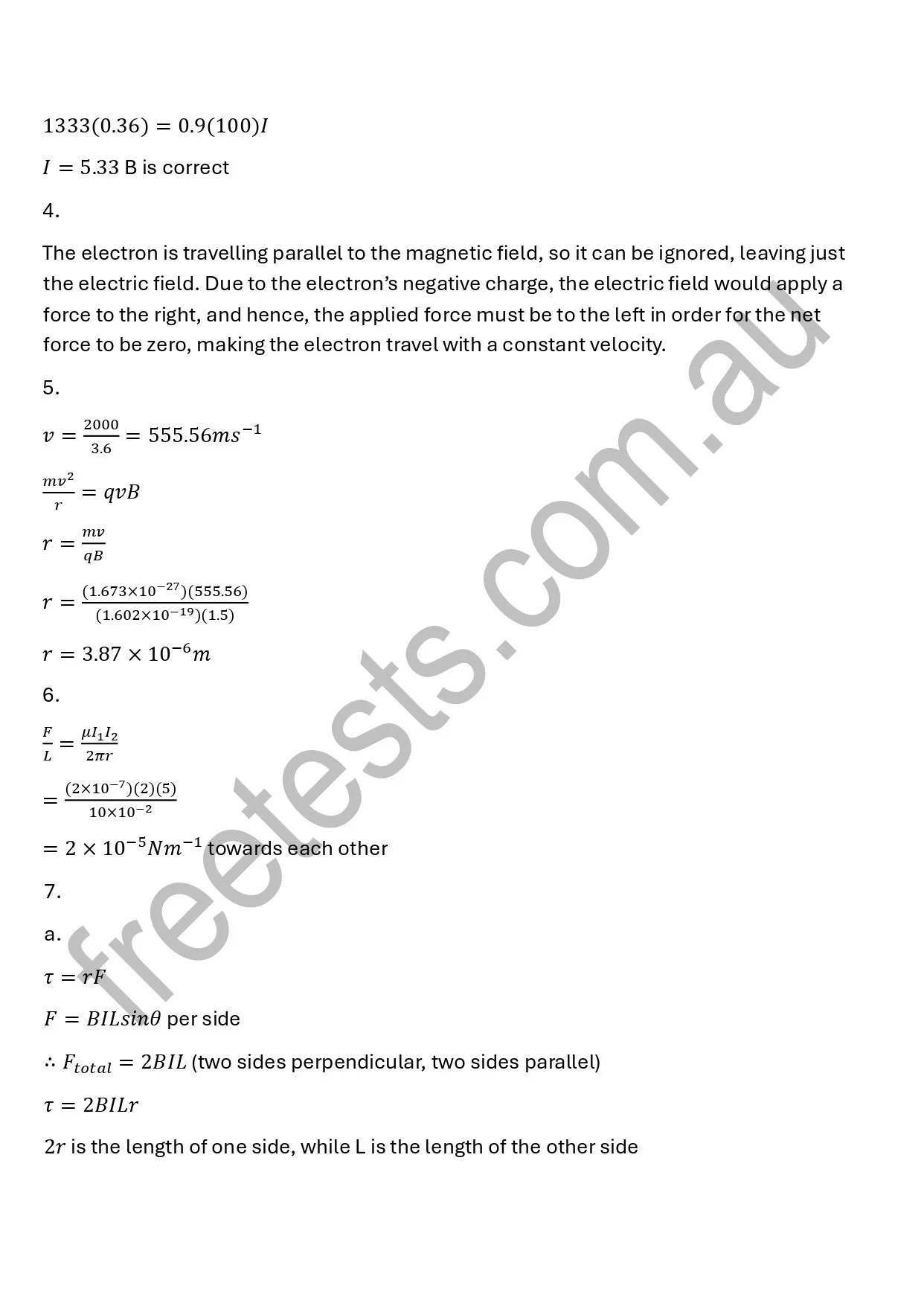

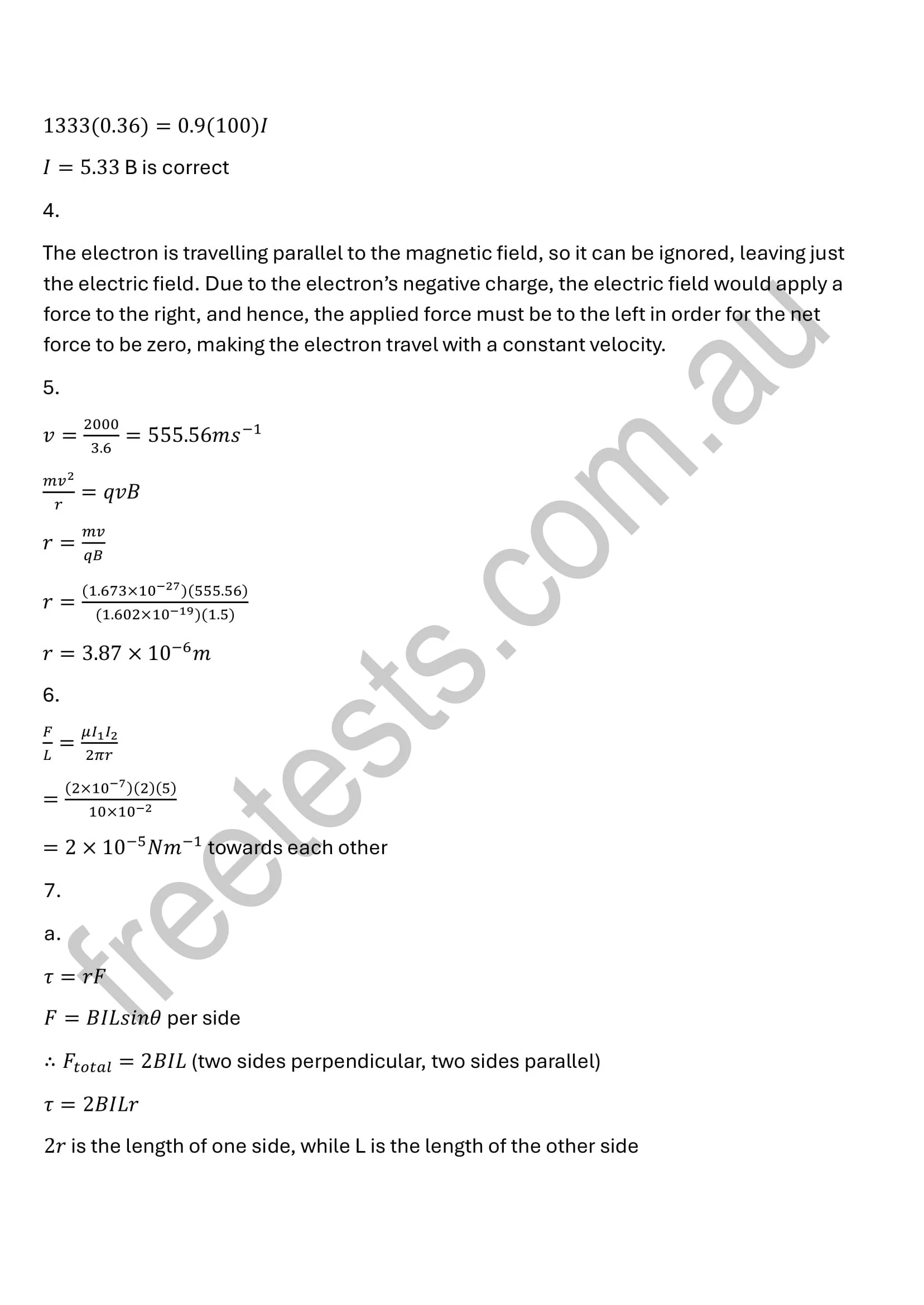

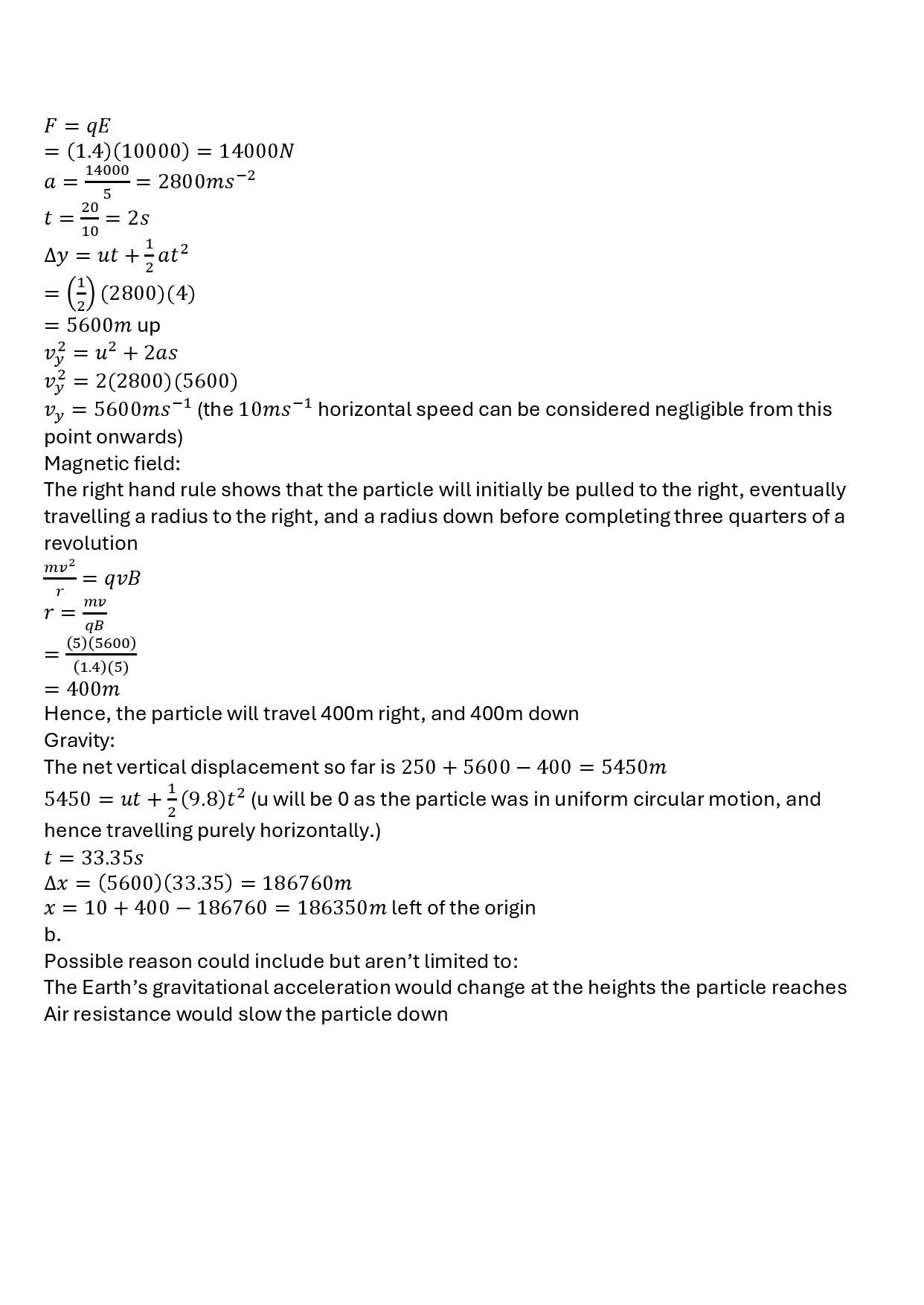

A page of scientific calculations and equations related to physics, including formulas for electron travel, force, and tension, with some variables and constants.

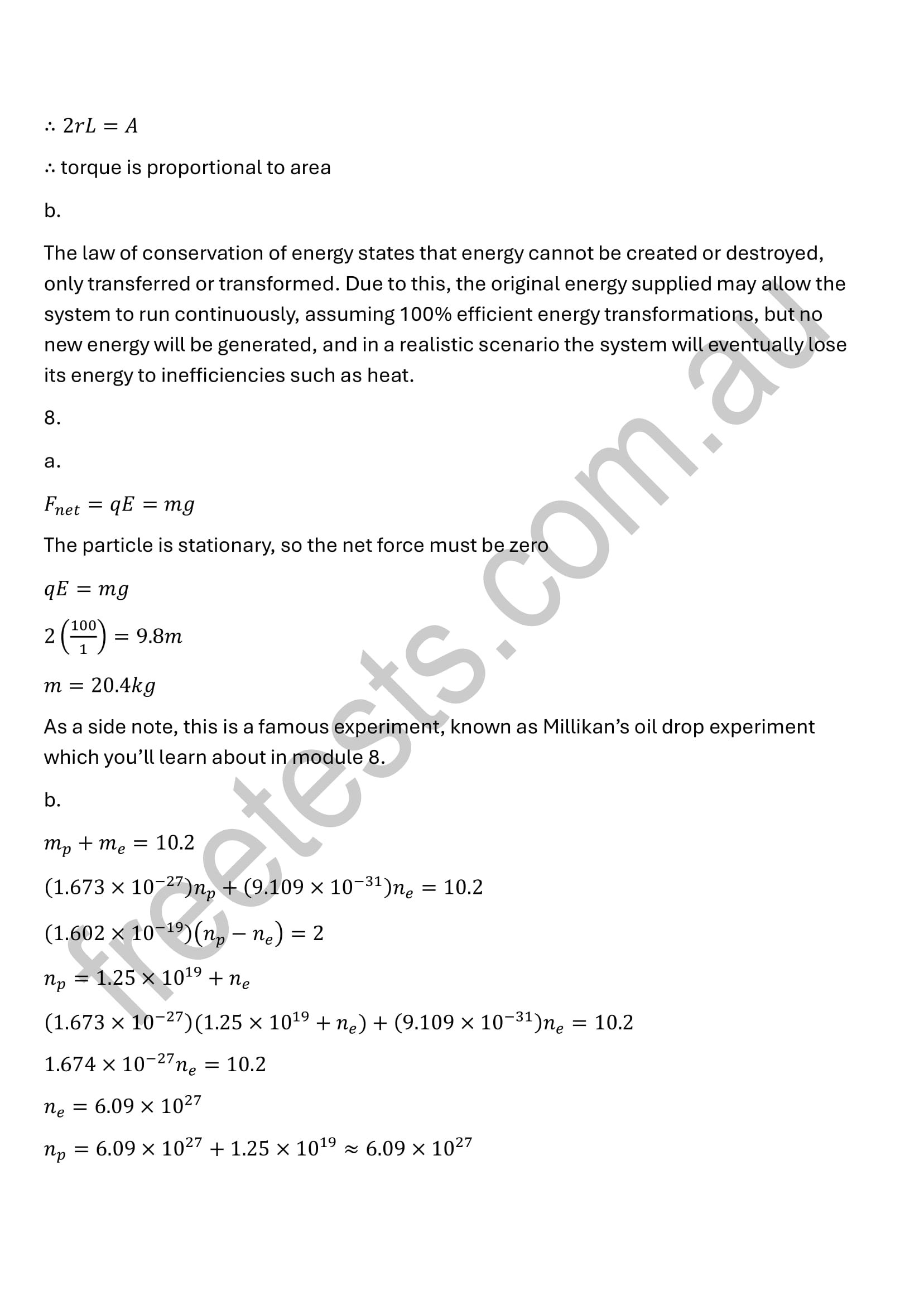

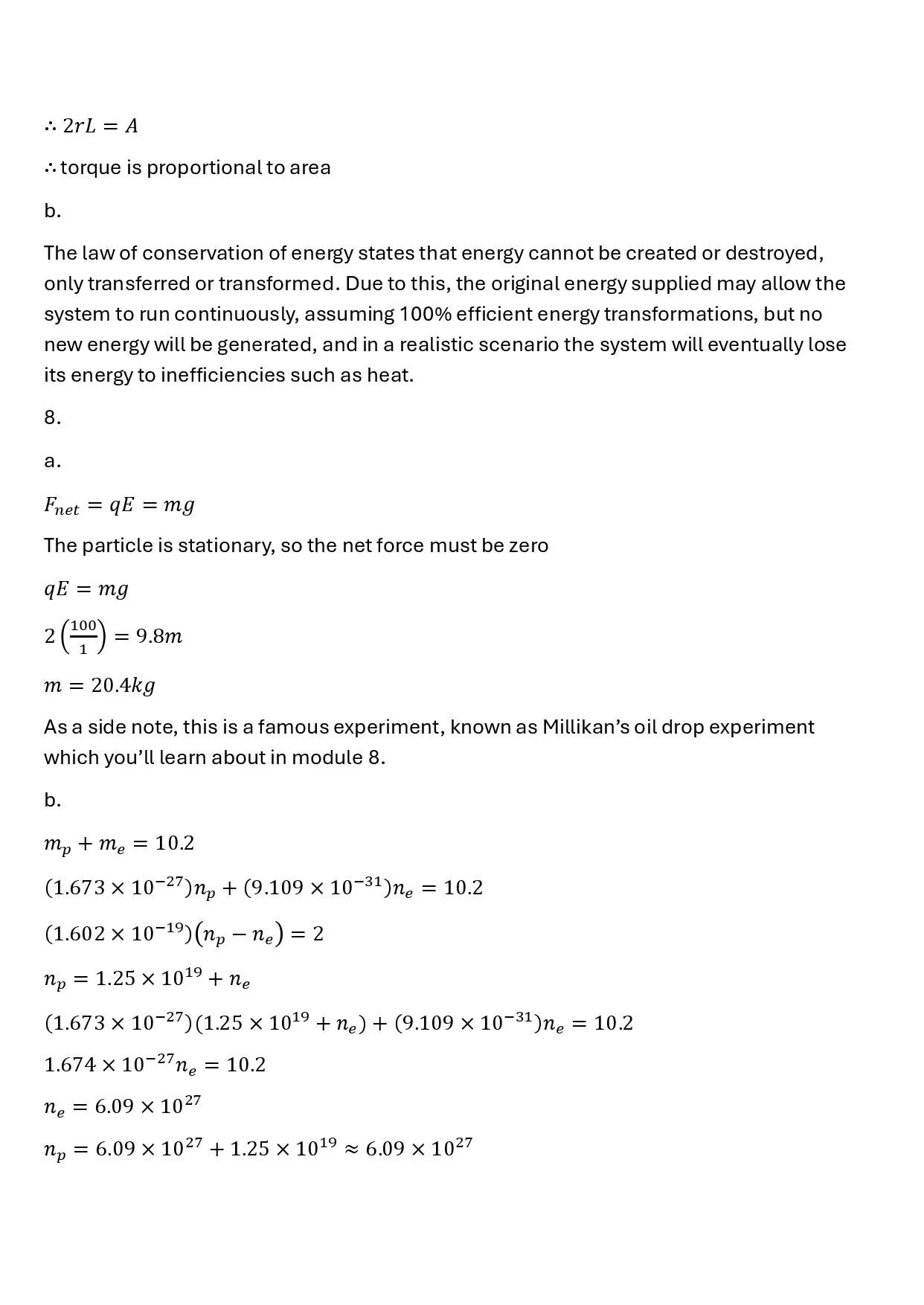

A page of scientific text containing physics equations and descriptions, including references to the Law of Conservation of Energy, Milikan's oil drop experiment, and calculations involving particle mass and charge.

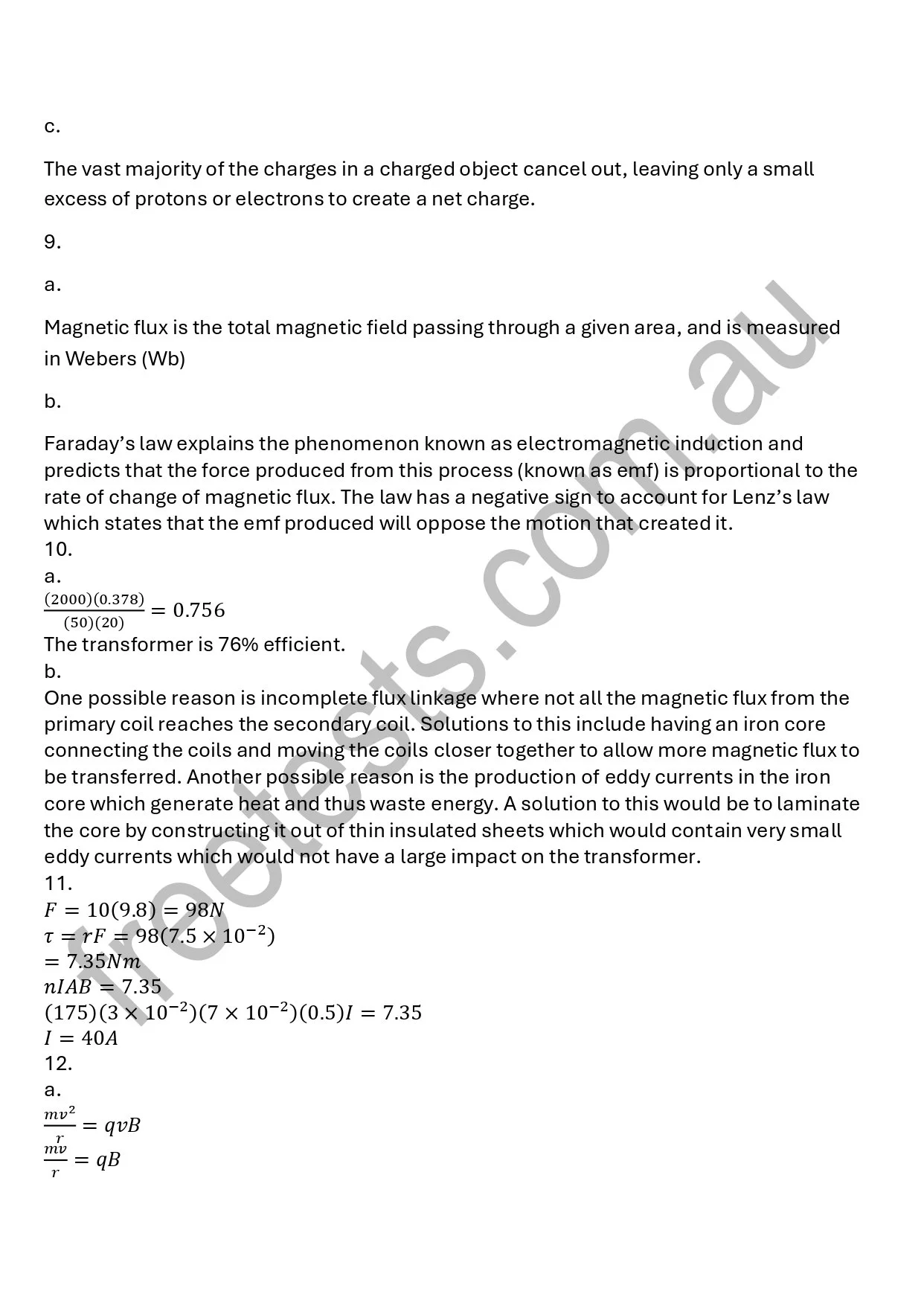

Close-up of a page from a scientific or physics textbook with text and mathematical formulas.

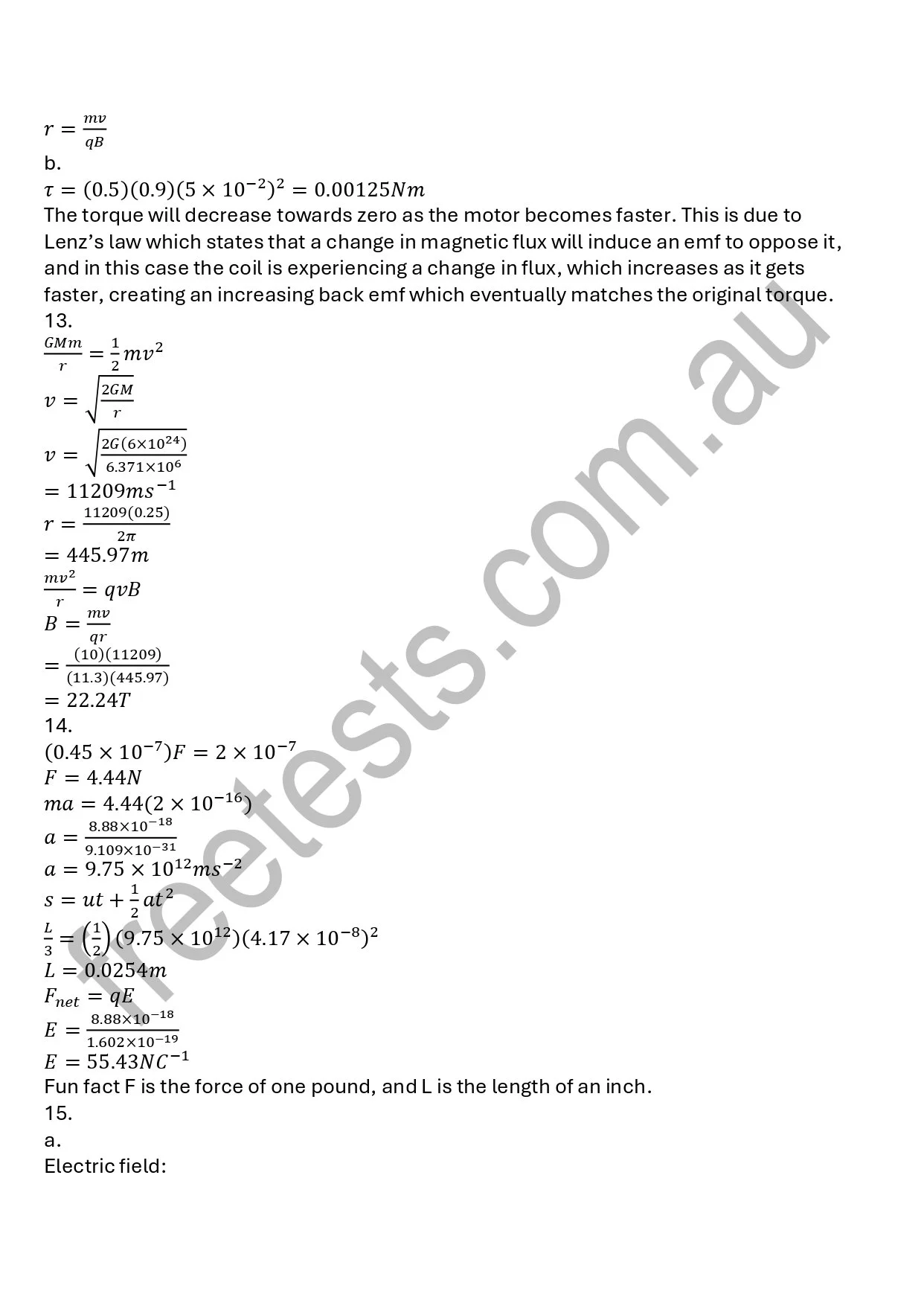

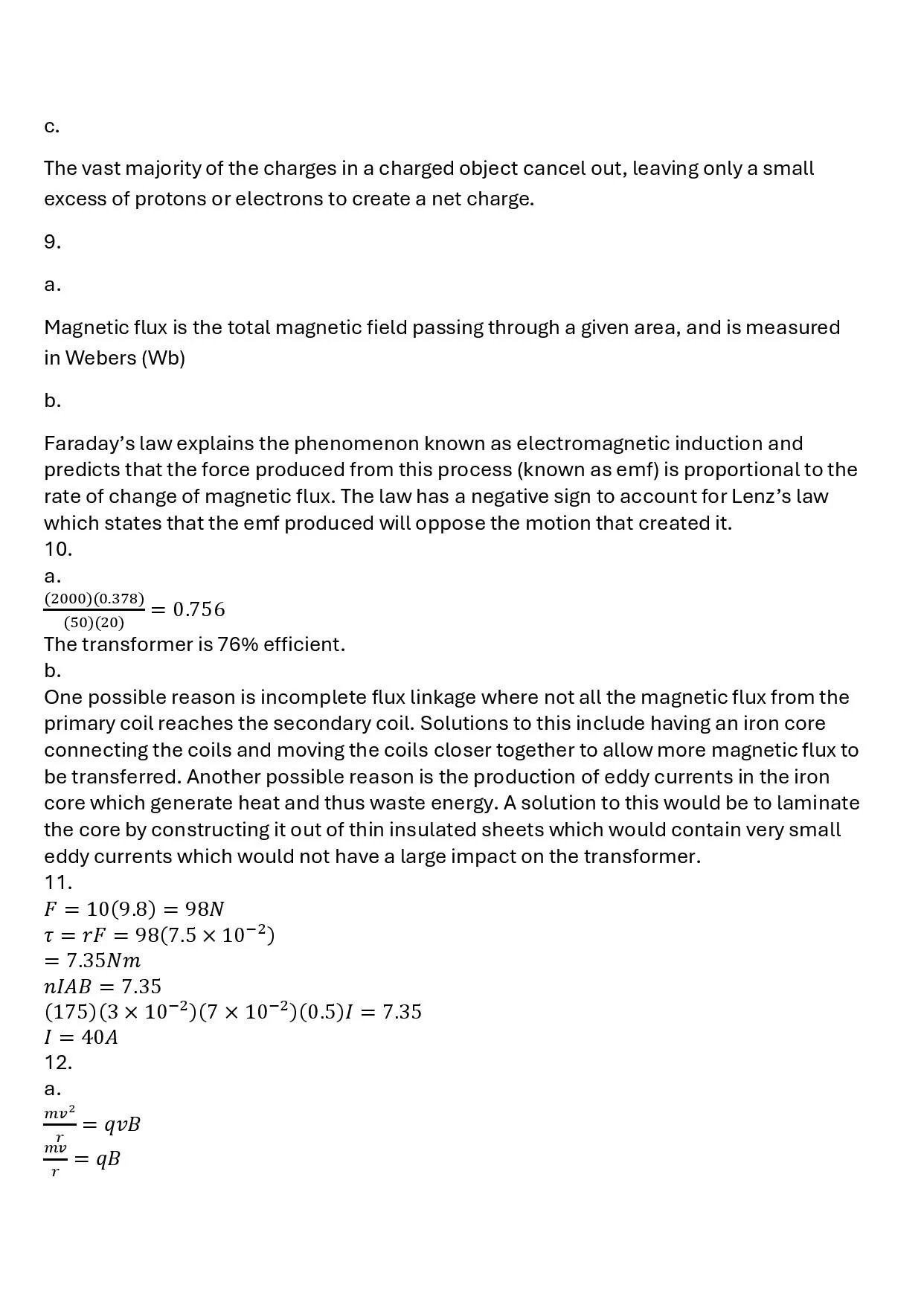

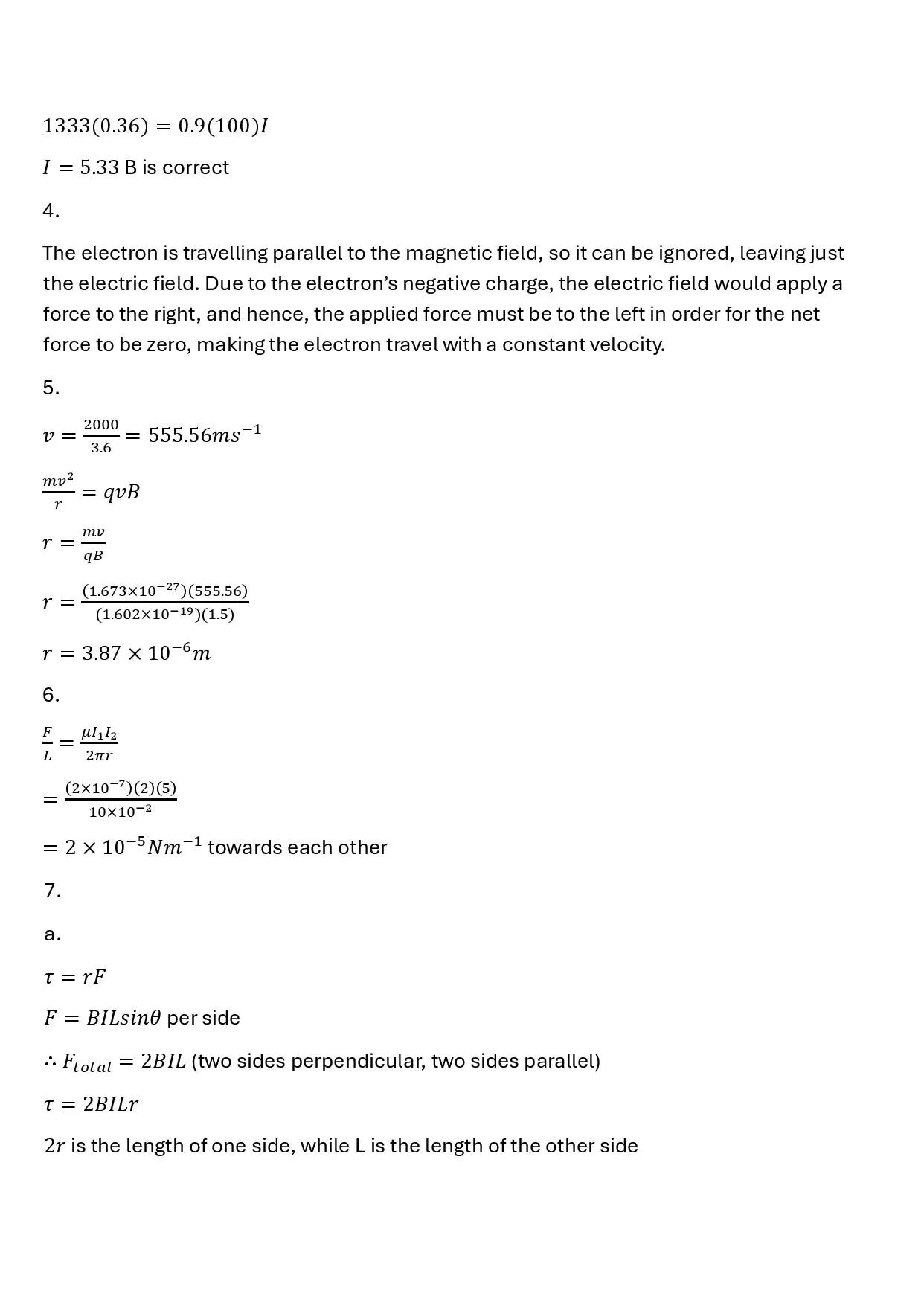

Page filled with physics equations and explanations related to torque, magnetic field, electromagnetism, force, acceleration, and other scientific concepts.
A page of handwritten physics equations and calculations detailing forces, acceleration, displacement, magnetic field, gravity, and motion analysis.

Below is a skills checklist I created based on the syllabus, if you can do everything listed below you should be in a good position for both your school’s module 6 topic test and the HSC.

  • Understand the acceleration and work done on a charged particle between two parallel charged plates

  • Understand how charged particles move in uniform magnetic fields

  • Relate the movement of charged particles in electric and magnetic fields to projectile and circular motion respectively

  • Understand the interaction between a current carrying conductor and a uniform magnetic field

  • Understand the interaction between two parallel current carrying wires

  • Understand the definition of the ampere and how it relates to current carrying wires

  • Define magnetic flux and understand how it can change

  • Understand Faraday’s law and Lenz’s law which describe what happens when there is a change in magnetic flux

  • Understand how energy is transferred in ideal transformers, why they are used and explain why transformers in the real world are not ideal

  • Understand the operation of a simple DC motor, including the function of its components, the production of torque and the effects of back emf

  • Understand the operation of simple AC and DC generators as well as AC induction motors

  • Explain magnetic breaking
